Description

Major refit in 2022 - New Engine and Standing Rigging


Over 100,000 spent on maintenance and upgrades

13mm Teak Deck new in 2012

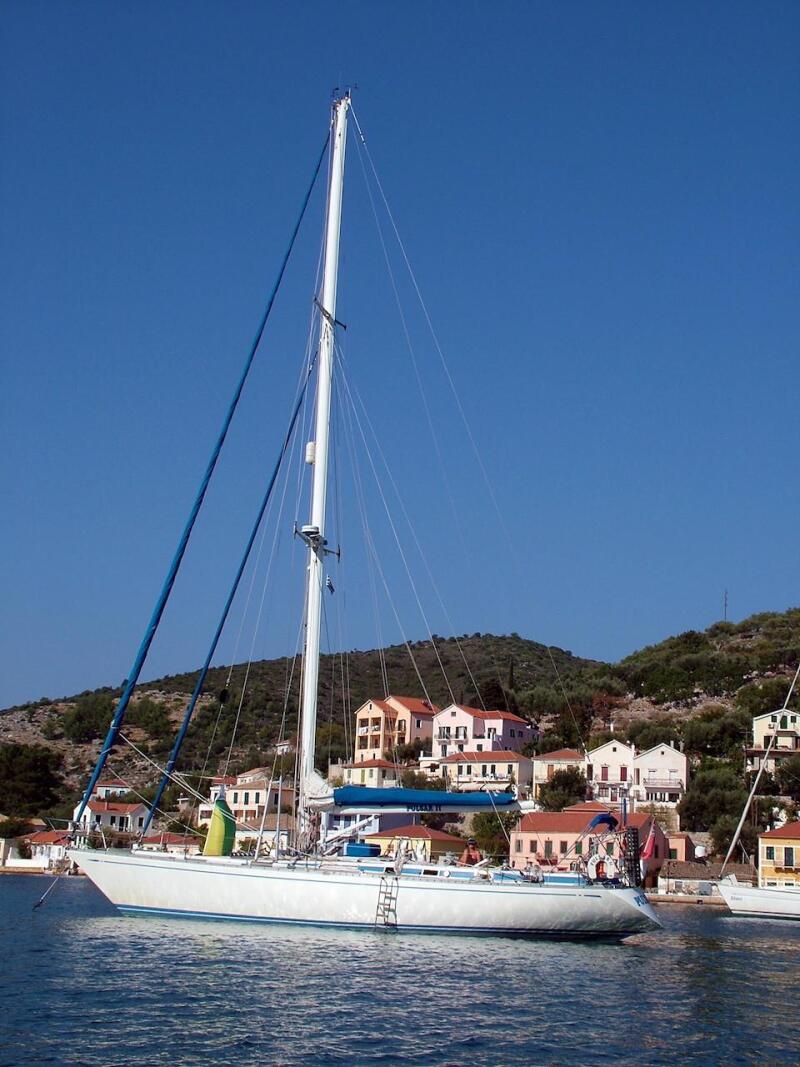

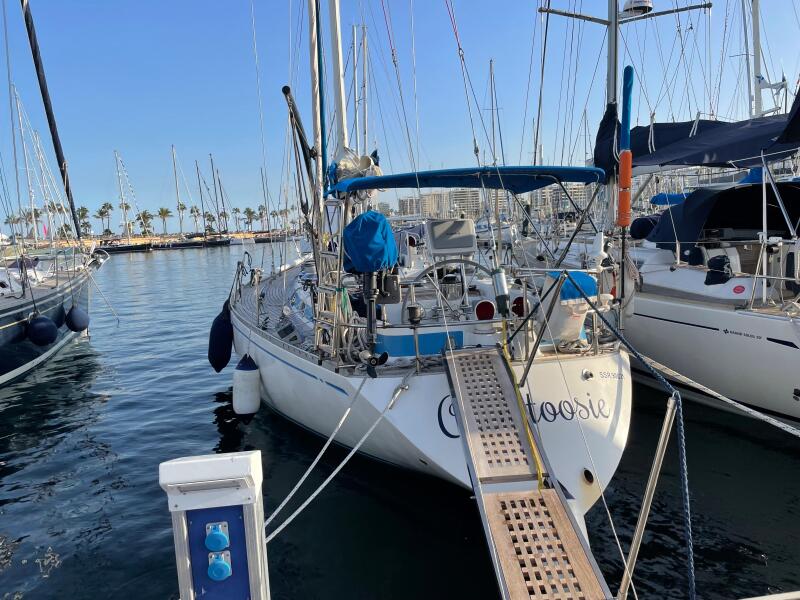

'Chantoosie' (Formerly 'Pulsar II') is an S&S Nautor Swan 47 MK II and was the first hull with the Mk II interior. This gives her a larger saloon and slightly smaller aft cabin compared to her earlier sisters with her mast just forward of the saloon table instead of in the middle of the table. She was built in June 1977.

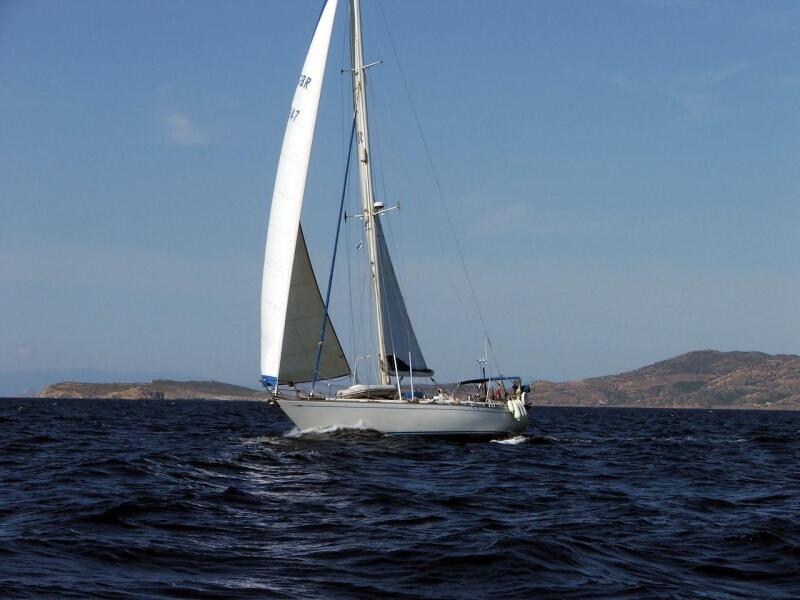

The Sparkman & Stephens Swan 47 is a very powerful sailing yacht with impeccable sea manners and performance, especially upwind. In her current configuration she is easily handled by 2 or more crew.


The current owners purchased the boat in Malta, in 2022 and subsquently refitted the yacht in Malta and Palma before undertaking the ARC. The boat is now lying in St Lucia (Ashore). The refit work included: New Volvo penta engine and gearbox, new standing rigging, new chart plotter, new safety equipmnet, new keel coolers for the fridge and freezer (much more efficient than compressor coolers), new shaft seal, new batteries, sat comms installed to name just a few items.


The previous owners purchased in Palma, Majorca in 2001. She was shipped to the UK via cargo ship and went immediately into a yard for professional work on the hull and the yacht in general. Over the next 2 years she was heavily refitted.

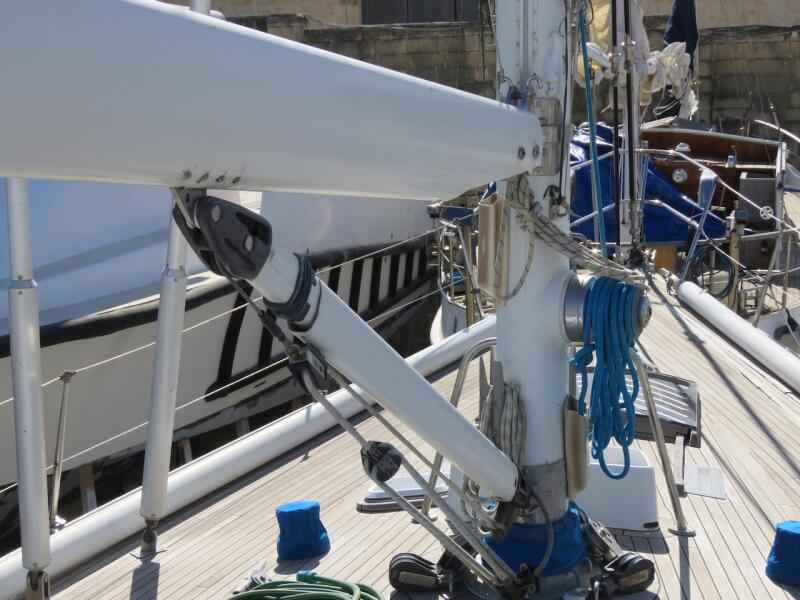

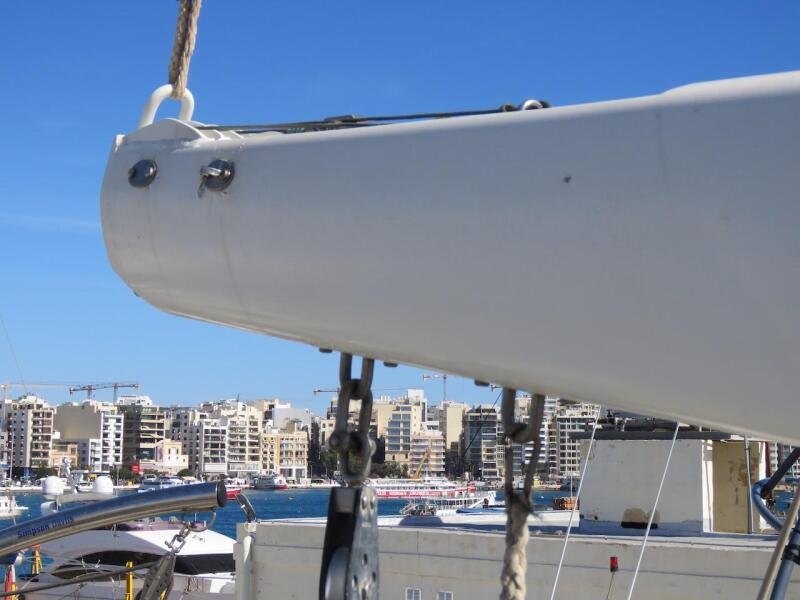

In 2004 the rig was un-stepped, all fittings removed and the aluminium tube painted in white Awlgrip. All mast fittings including the rod kicker were also painted. The mast was re-assembled and re-stepped after all rigging and electrics were checked and replaced as required.


The work was carried out at the Swan service centre, Camper & Nicholsons, Gosport.

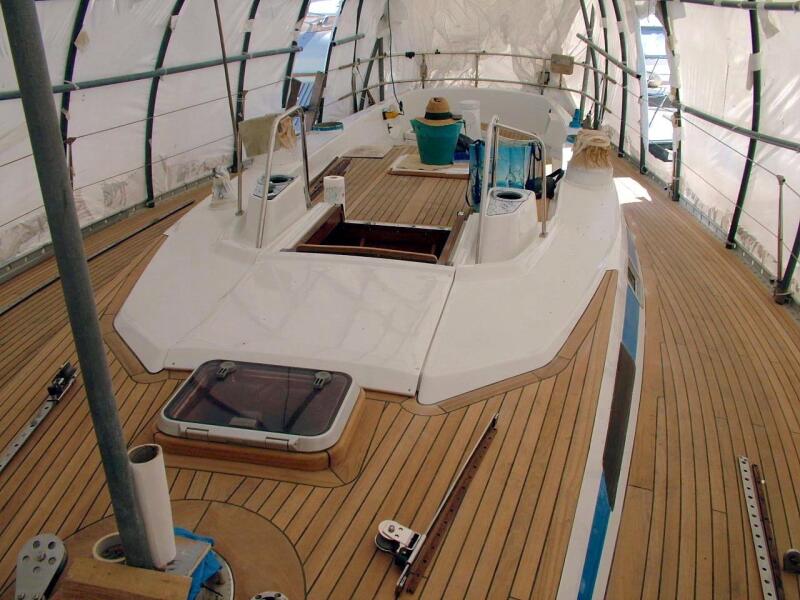

Since then she has been continuously updated. In 2012 she had a new 13mm teak deck, new instrumentation including a chart plotter at the helm position in a custom built stainless steel frame, new anchor chain and a new cruising furling genoa in 2014.

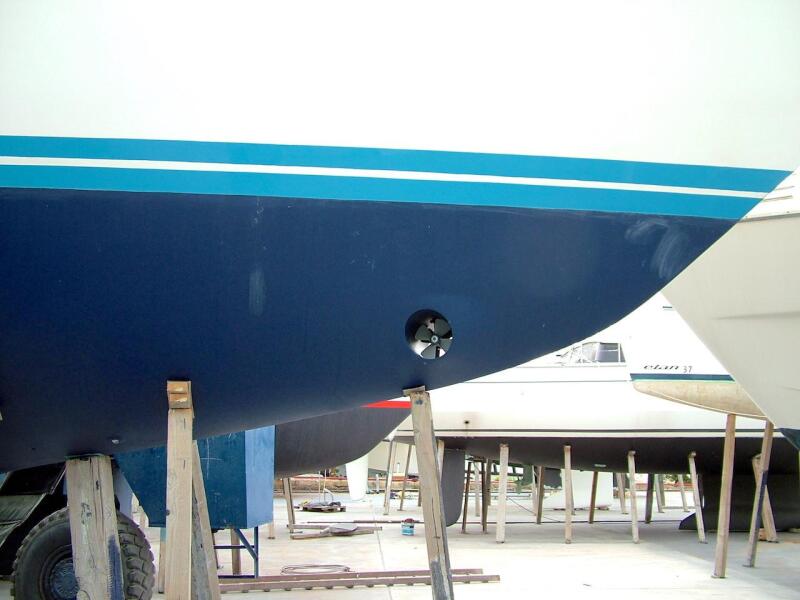

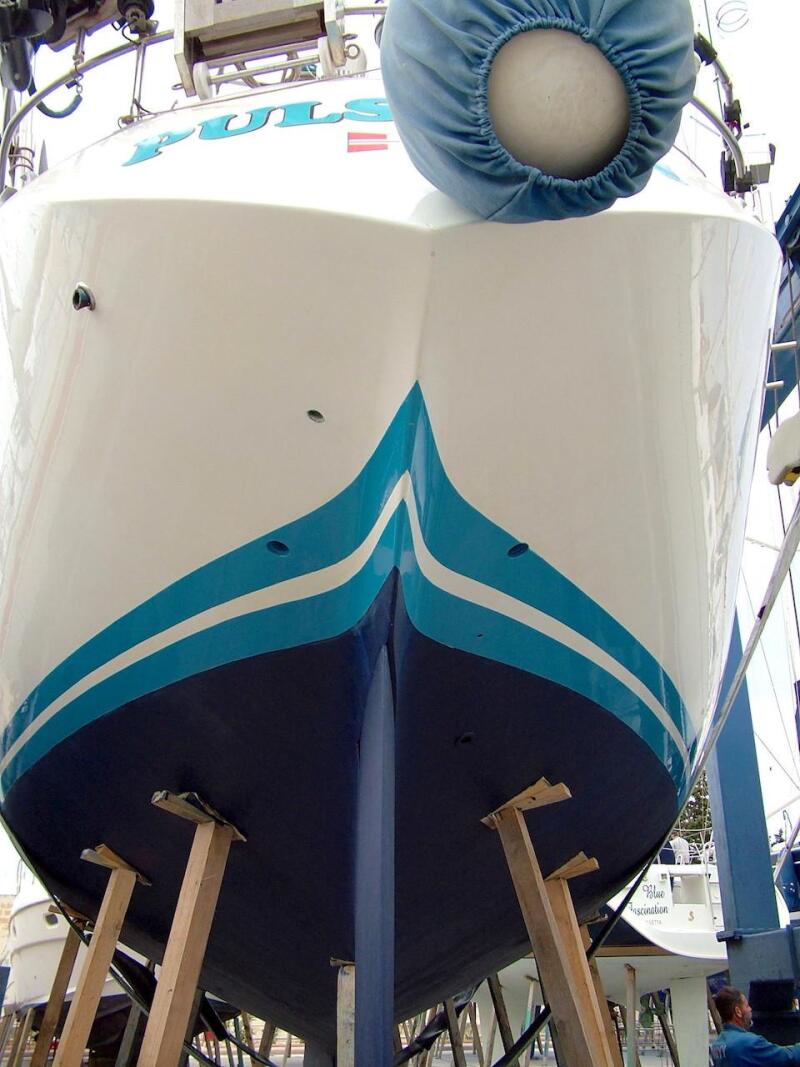

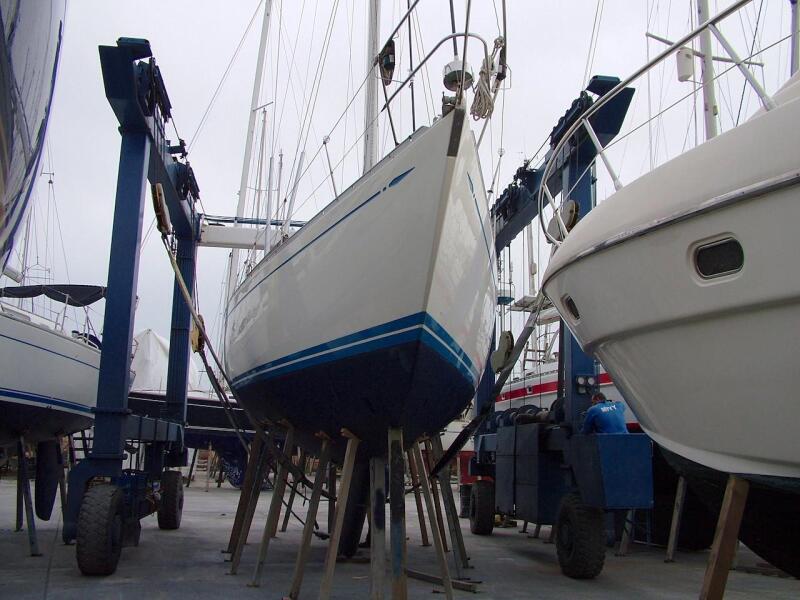

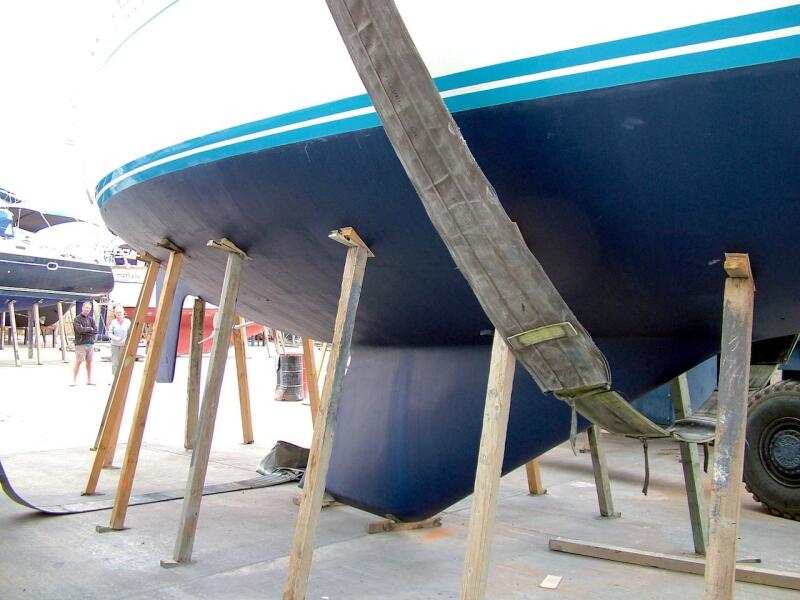

The hull is original gel which is in very good condition. The coachroof and cockpit were painted in 2012 with white Awlgrip, 6 coats.


She was very successfully raced in 2003, achieving overall amateur winner of the Swan Europeans and 1st in class in JOG Cat 3 Class 1 summer series.


In 2004 she left the UK and was sailed to the Mediterranean. In 2005 she arrived in Malta and has been based in Malta since that date and has been updated every year with the concept of keeping her as original as is practical.


Note - This boat is deemed EU VAT paid, however this EU VAT deemed paid status would be lost if the sale completes outside of the European Economic Area. If a buyer would like to keep this VAT status then it may be possible to do so by Completing the sale in the EU. Please get in contact to discuss the options around this.

Specifications

Accommodation

Summary of accommodation:


8 berths in 2 cabins plus the saloon.


All interior joinery is of light grained teak of uniform appearance and colour, finished with a hand rubbed satin finish varnish. The varnish in the complete interior is in very good condition and has been maintained annually.

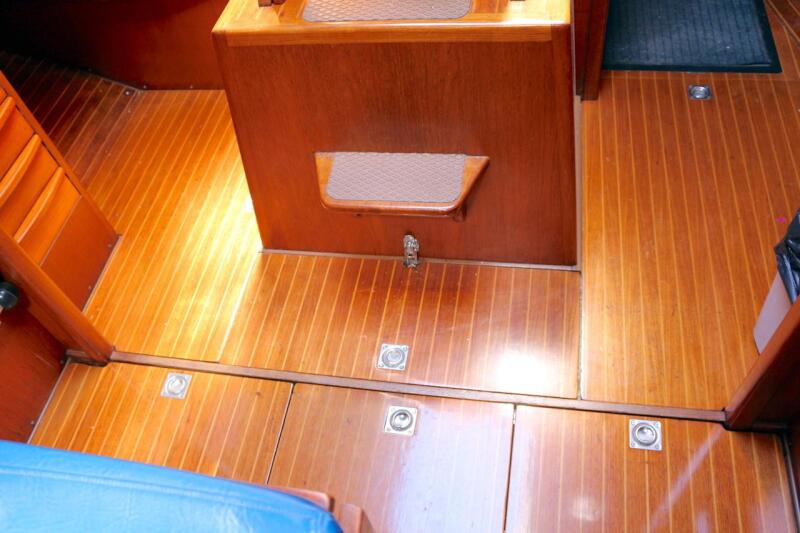

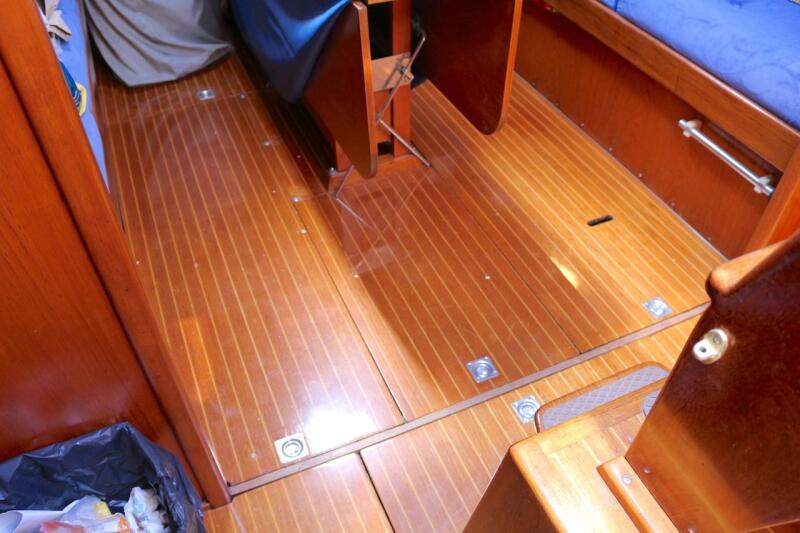

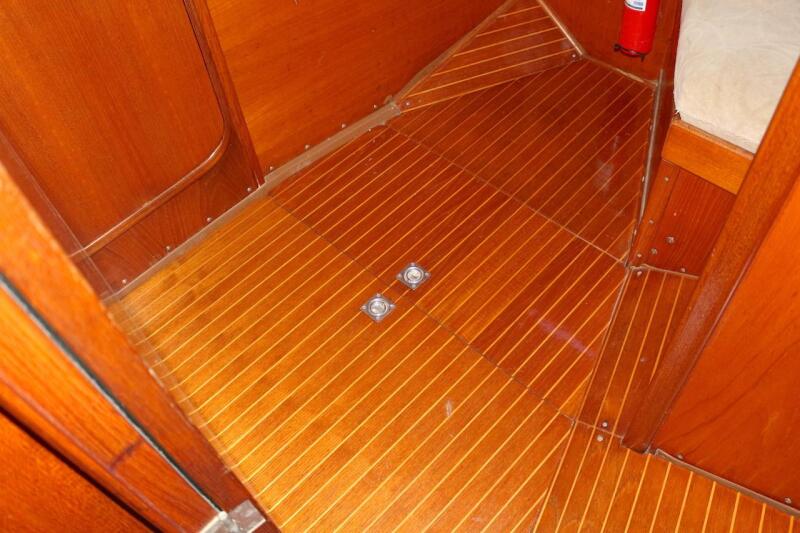

The sole boards are the original Nautor marine ply boards and are in very good condition.


Cream vinyl headlining with teak battening.

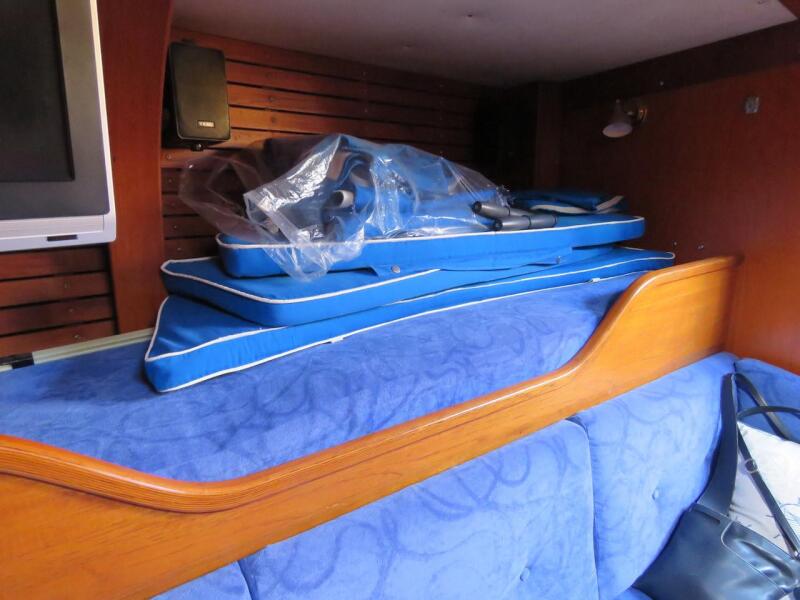

Quality Blue upholstery in saloon/forward cabin with new foam renewed in 2004. Same make Beige upholstery in aft cabin renewed in 2004 with new foam in 2009.


Blue canvas lee cloths for all sea berths.


Description of layout from forwards:

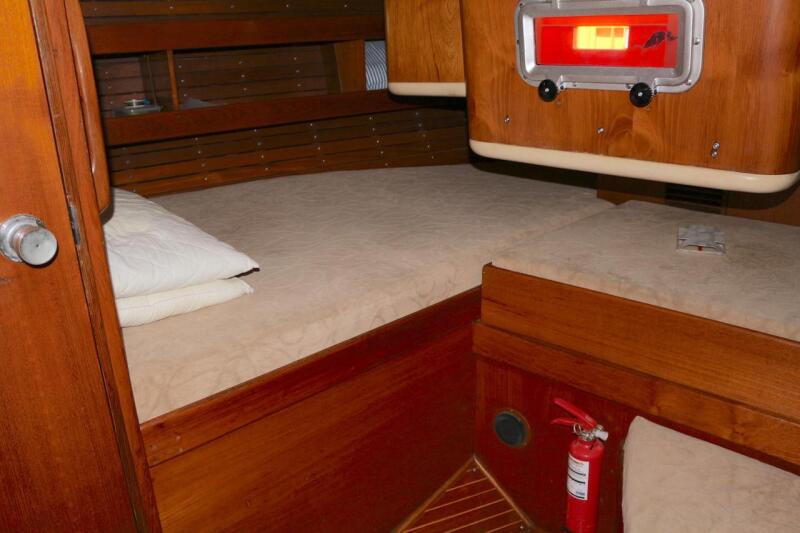

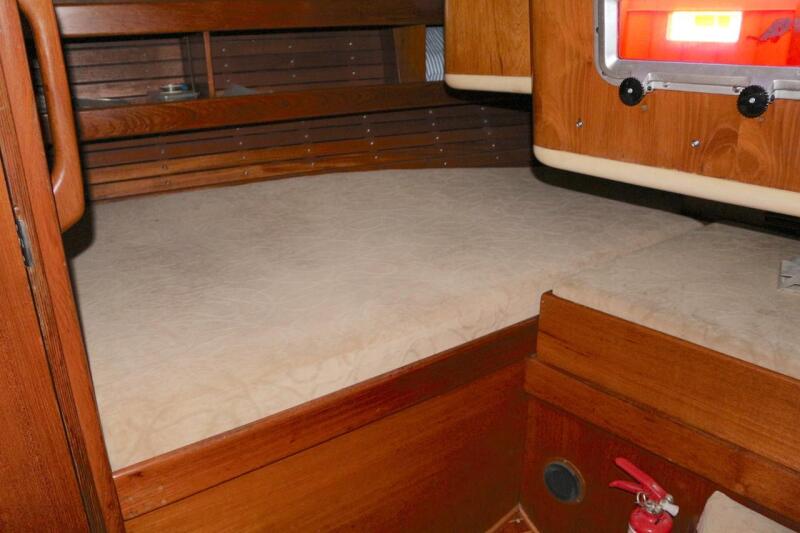

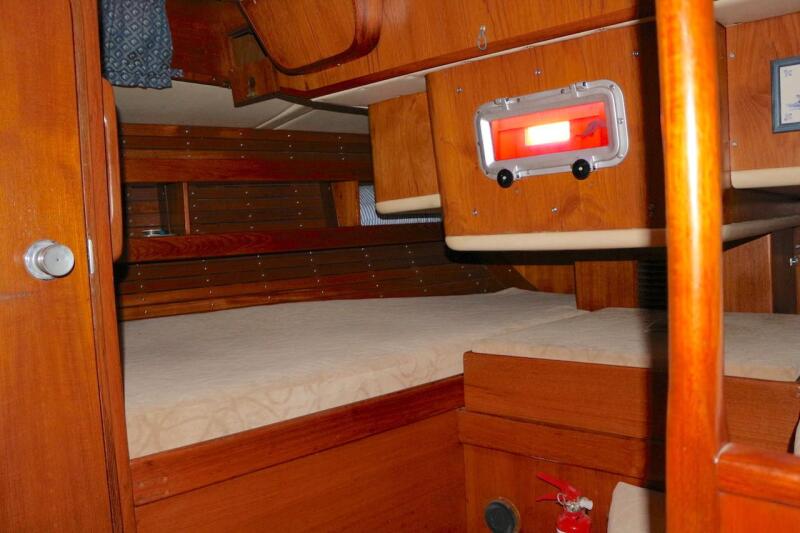

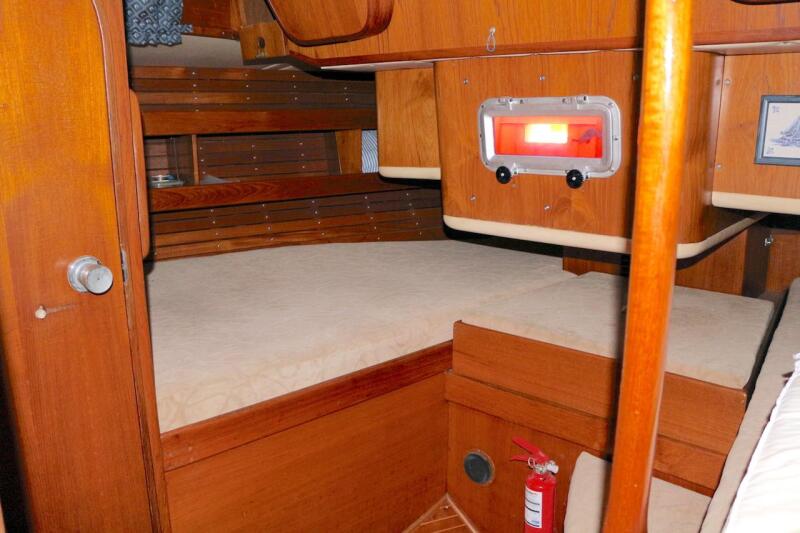

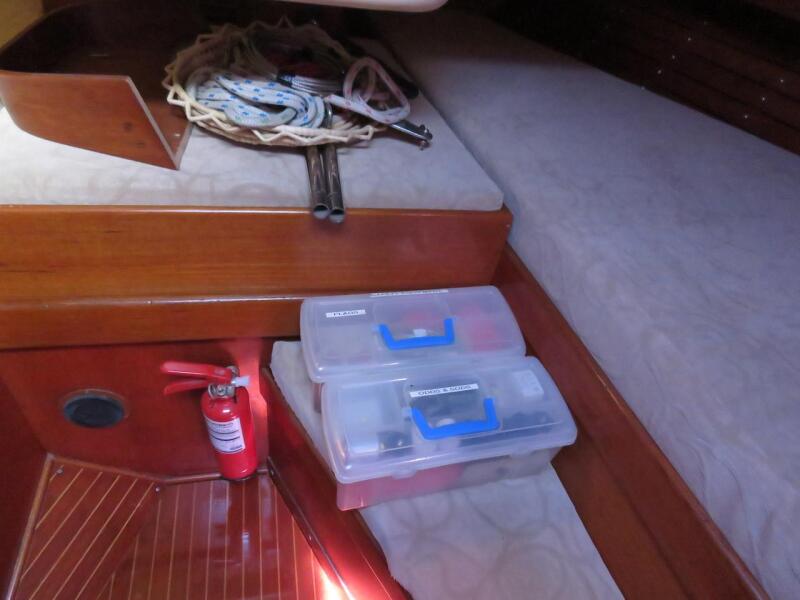

A spacious forward cabin with two folding berths. Stowage beneath berths.

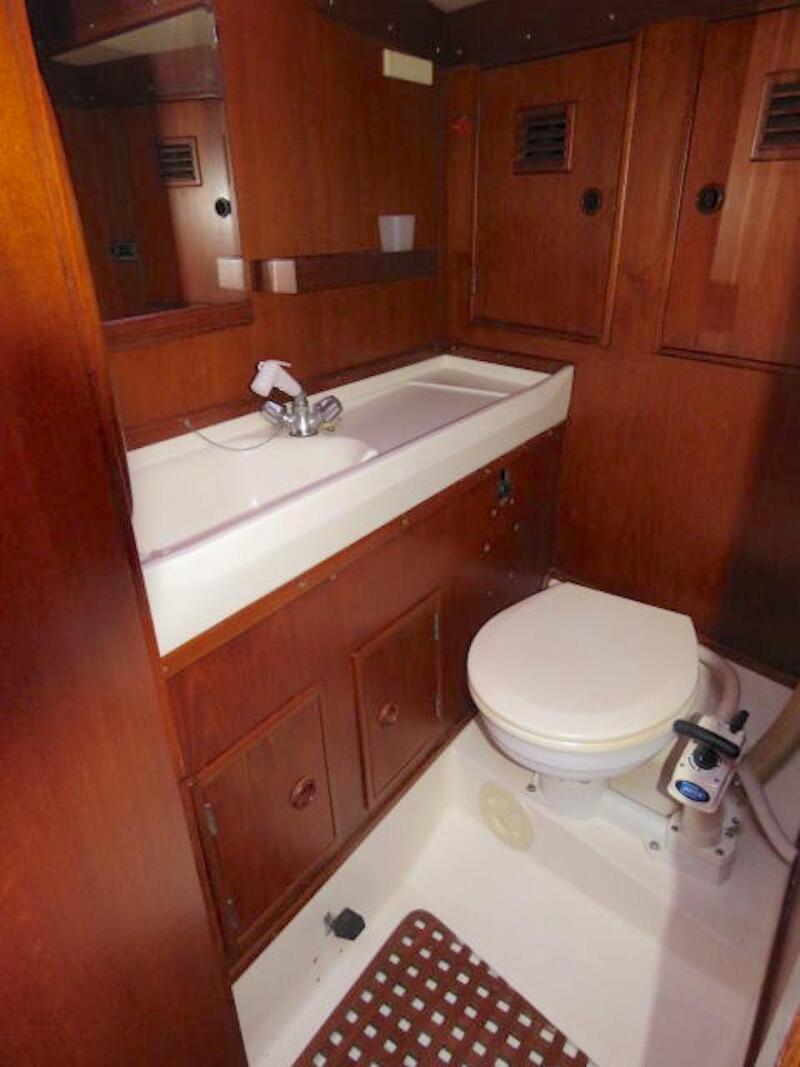

Aft of forward cabin there are lockers to starboard. The forward heads are to port with hot and cold water, shower and more locker space.

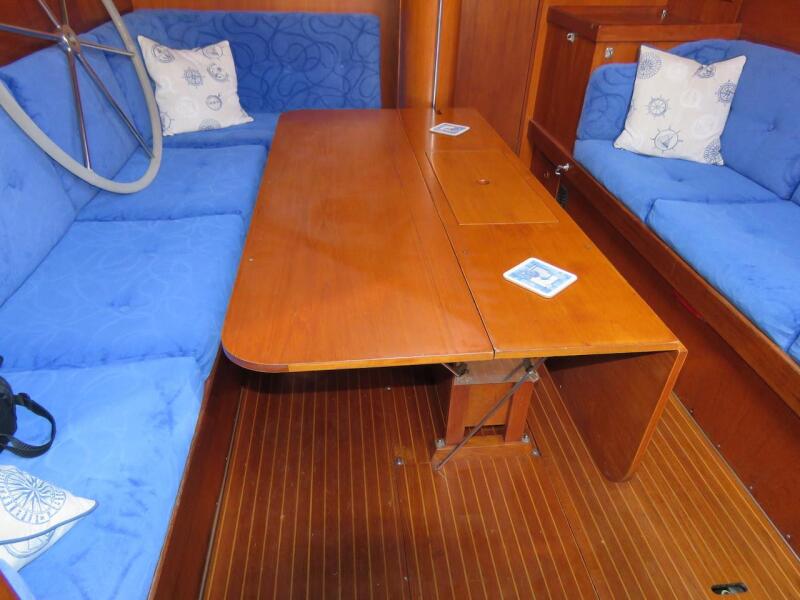

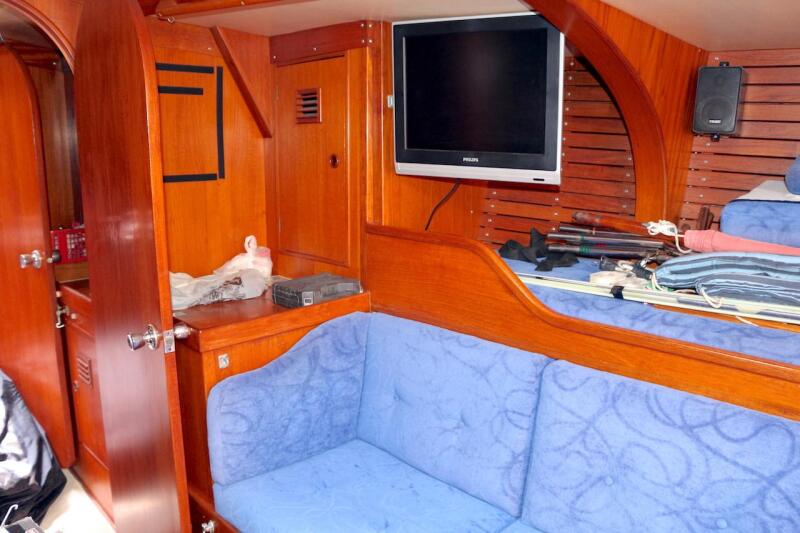

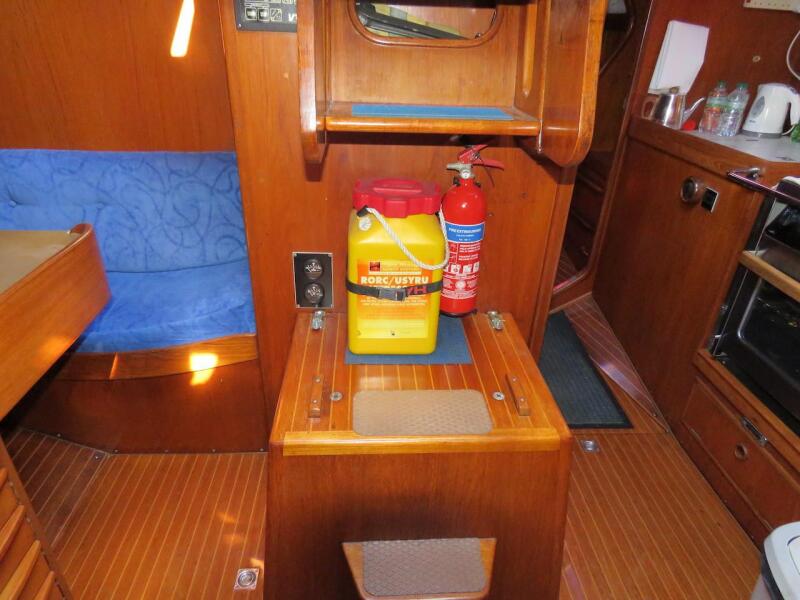

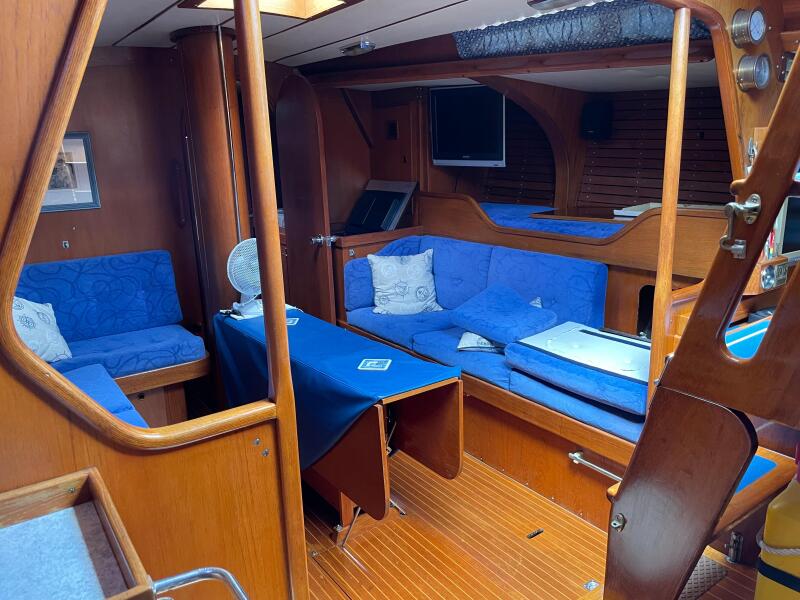

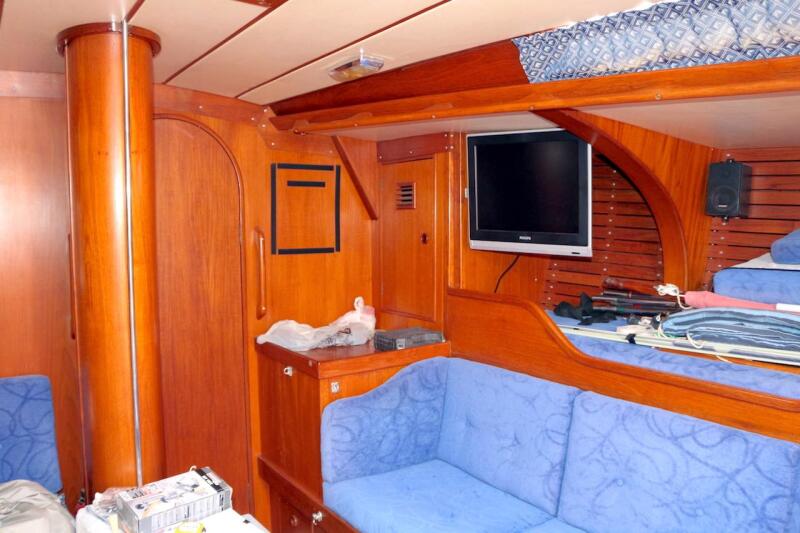

Moving aft again, the main saloon has a large drop leaf dining table between the settees offering comfortable dining for eight. The table has a custom cover for protection when sailing. There is generous storage behind the seat backs and outboard of the settees there are sea berths and additional storage. Just forward of the table is the keel stepped mast enclosed in a teak box the same shape as the mast section. This is a rare option and finishes off the saloon.

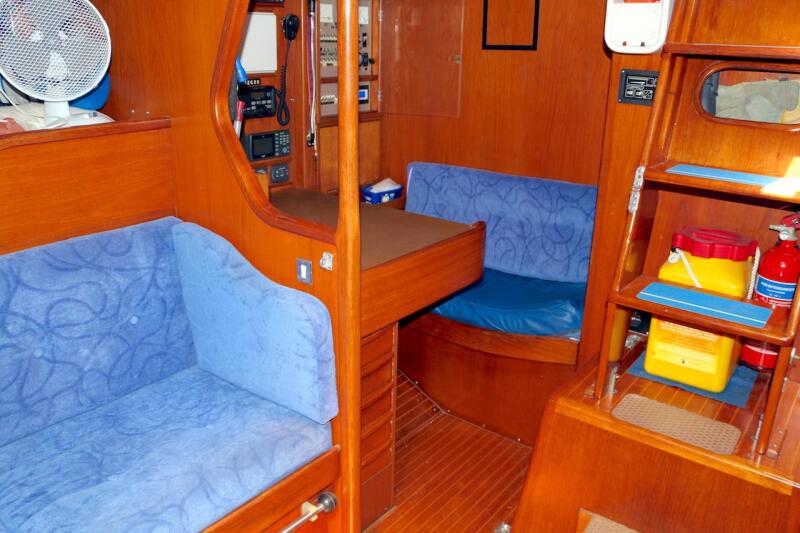

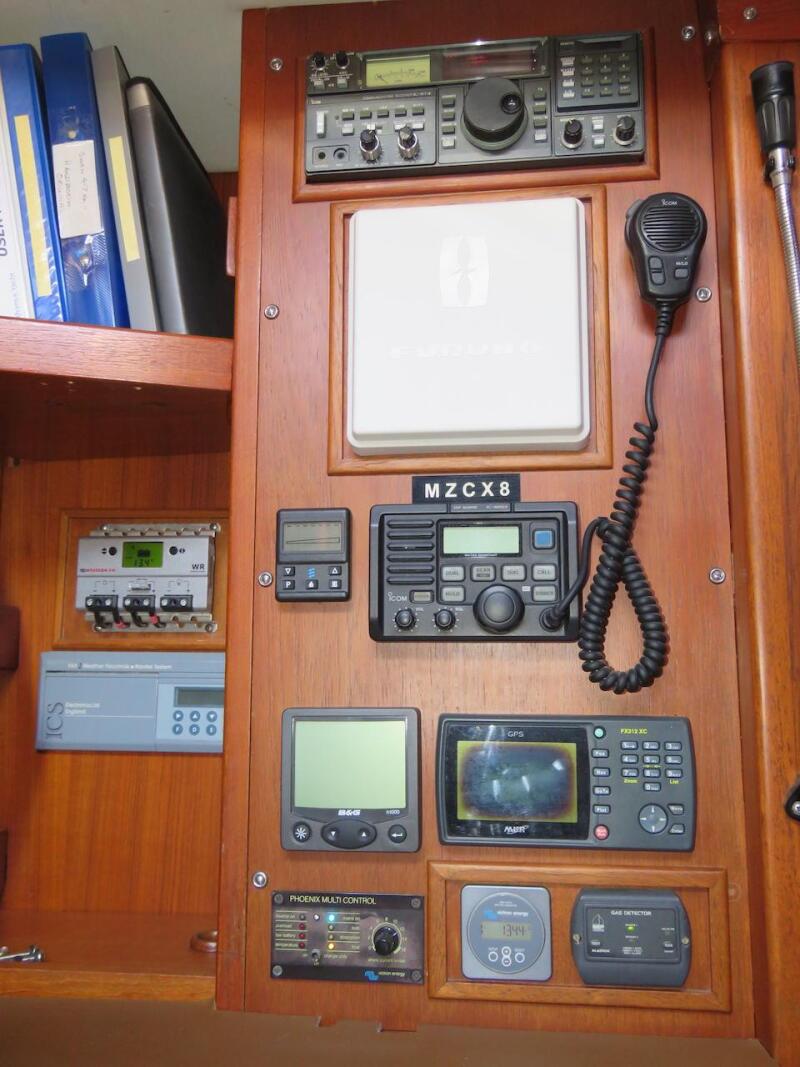

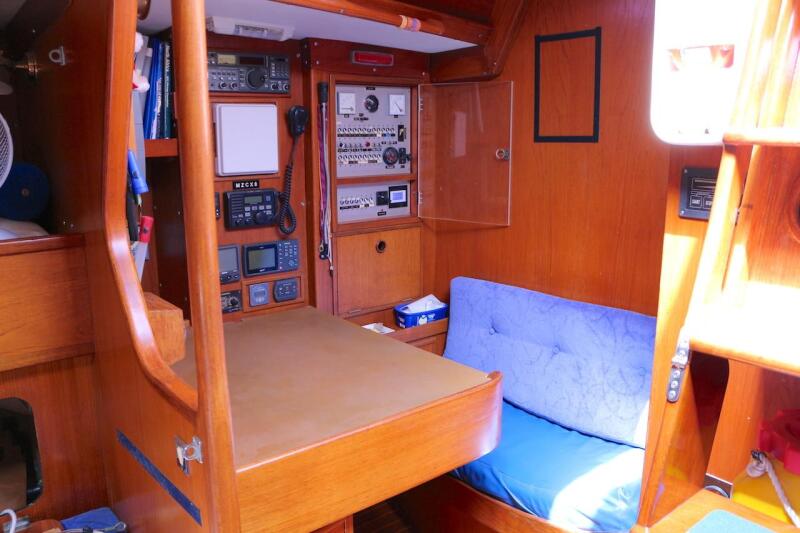

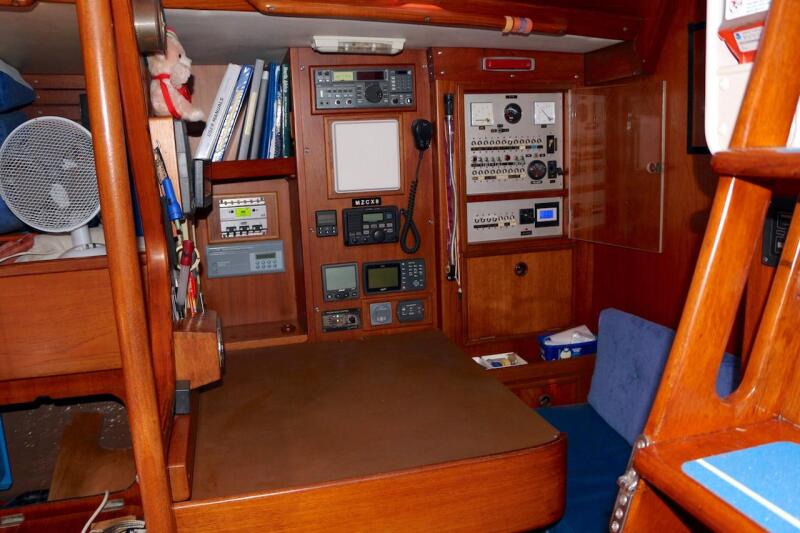

On the starboard side aft of the settees, is a large forward-facing chart table with upholstered seat and adjacent switch panel. The seat has a vinyl cover for protection when sailing.

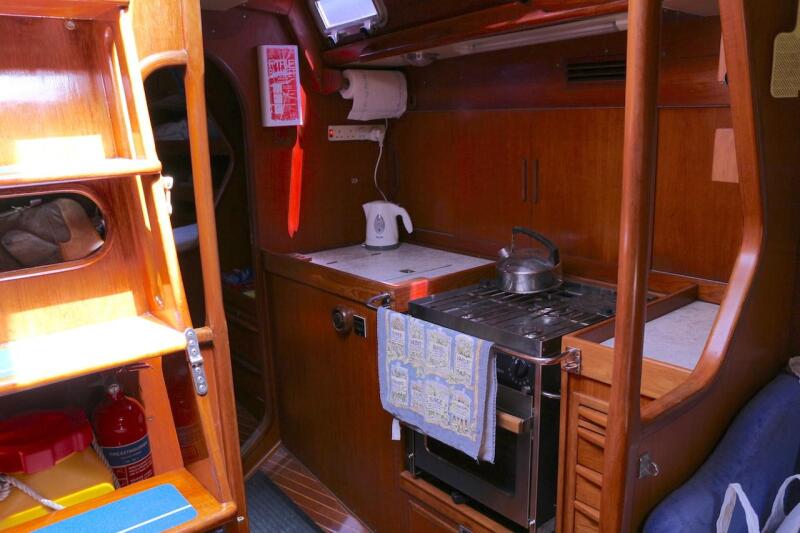

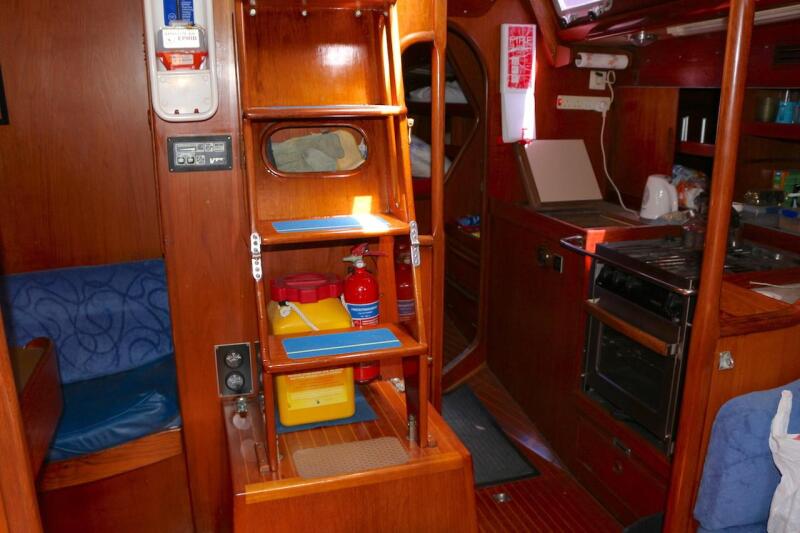

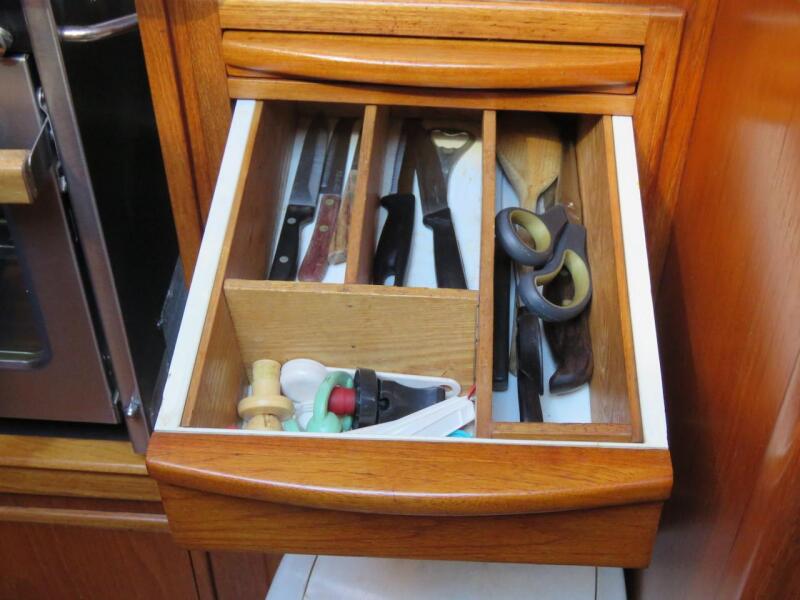

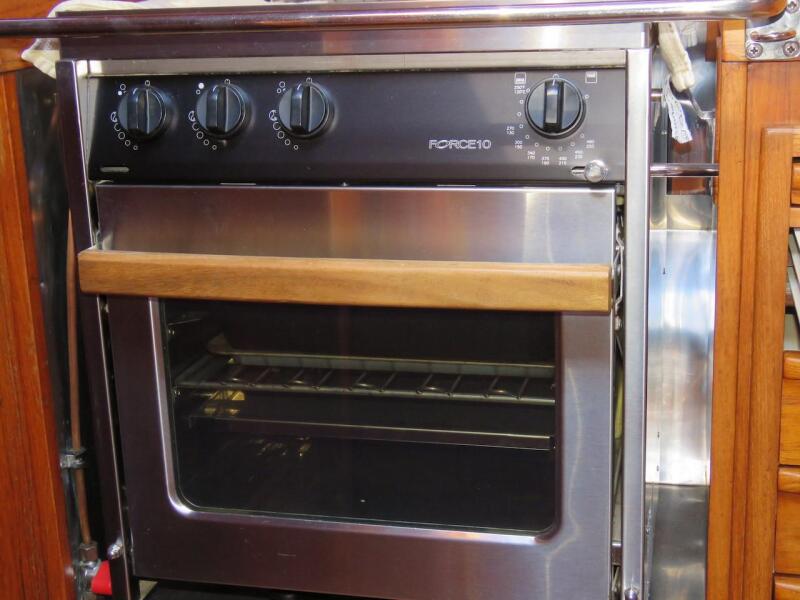

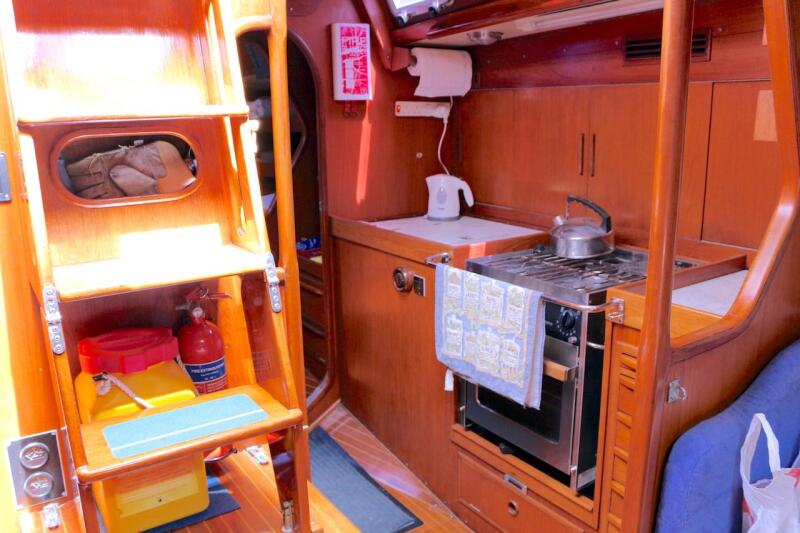

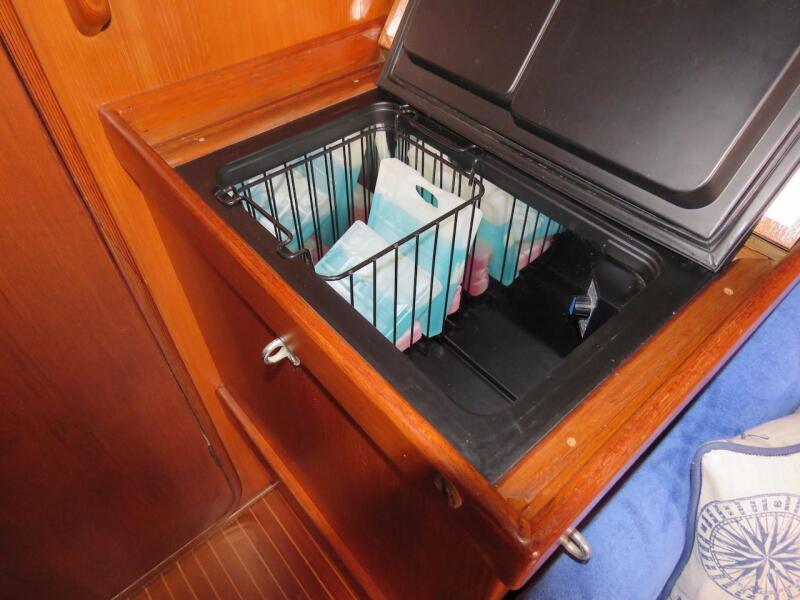

Opposite the chart table on the port side running either side of the passageway to the aft cabin, is the galley area with cooker, twin sinks, drying rack and fridge under a Formica topped worktop.

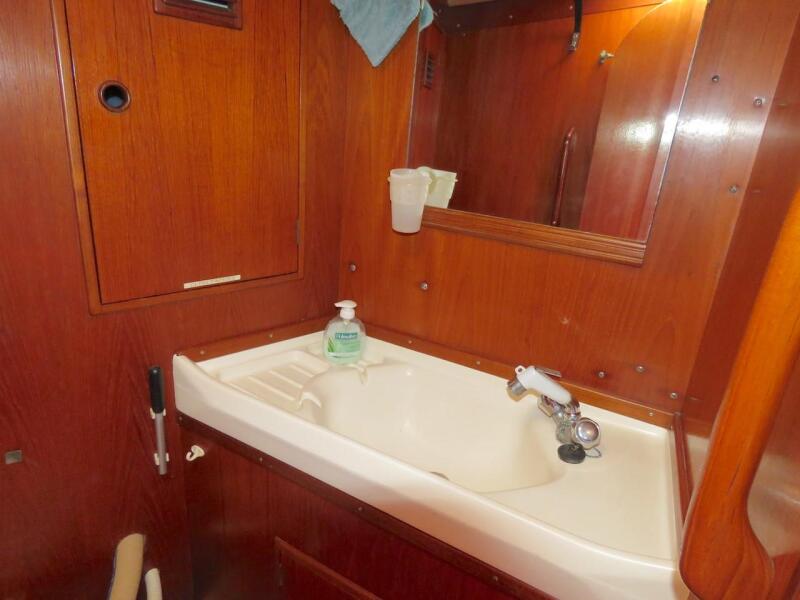

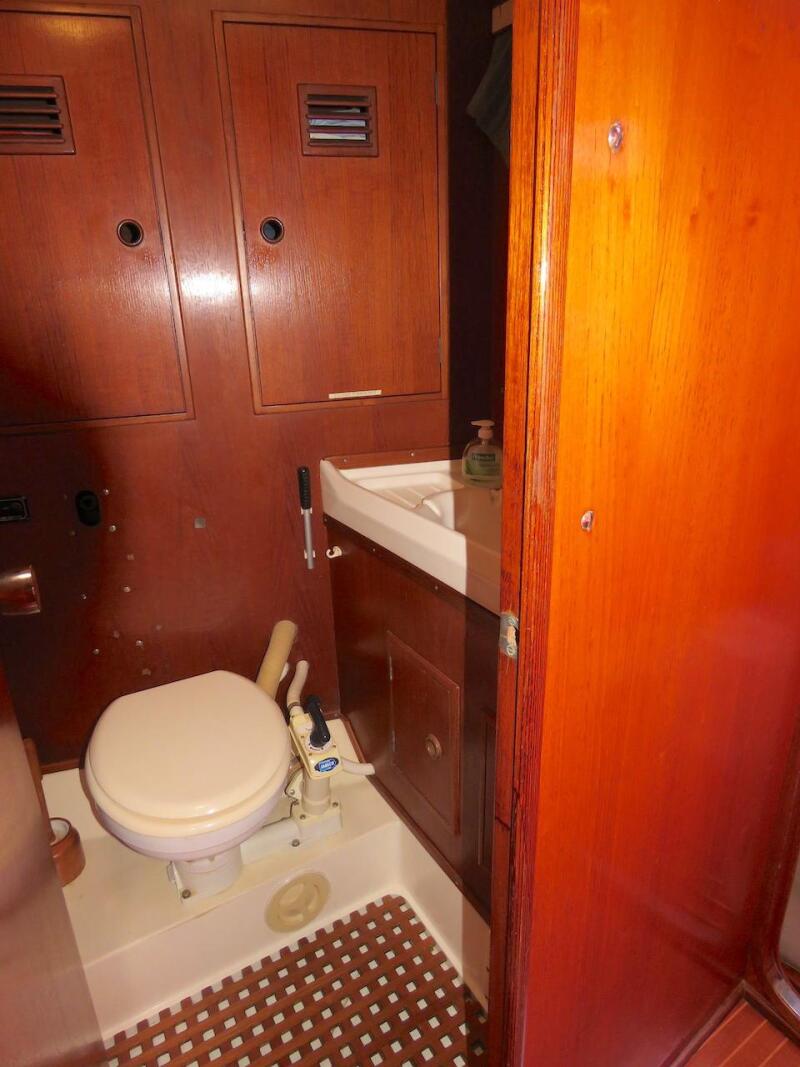

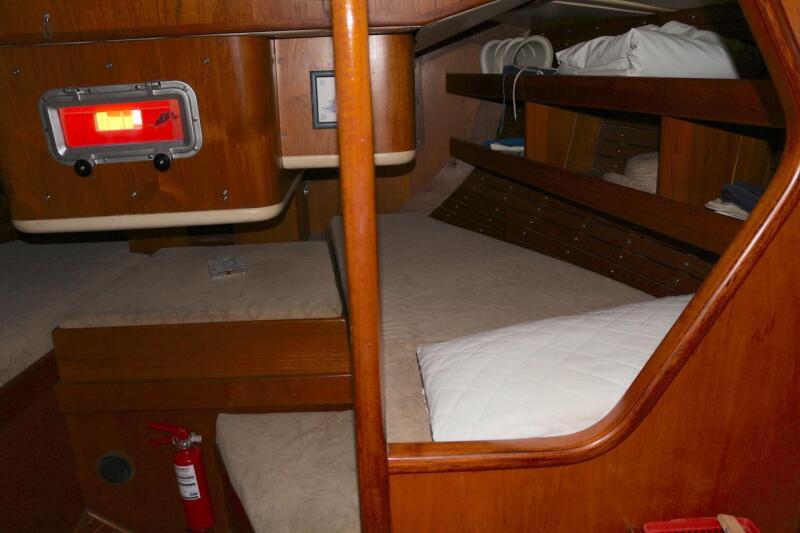

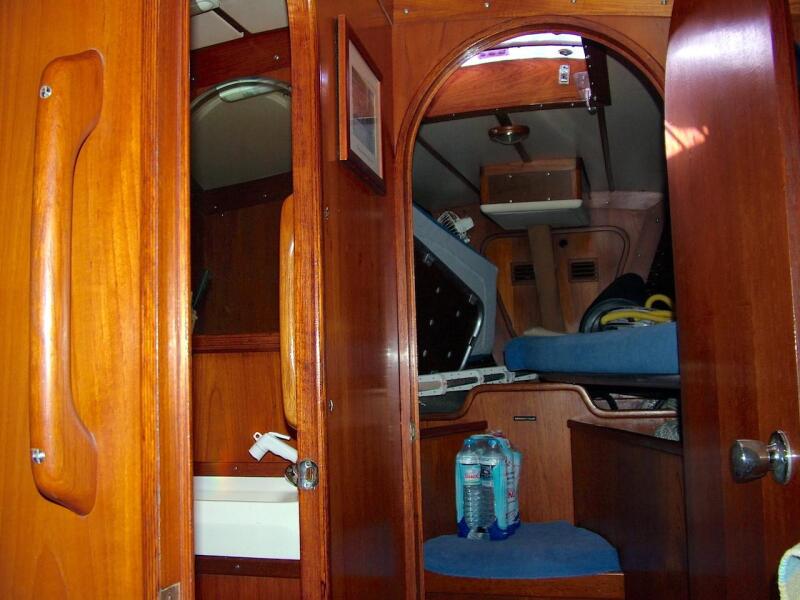

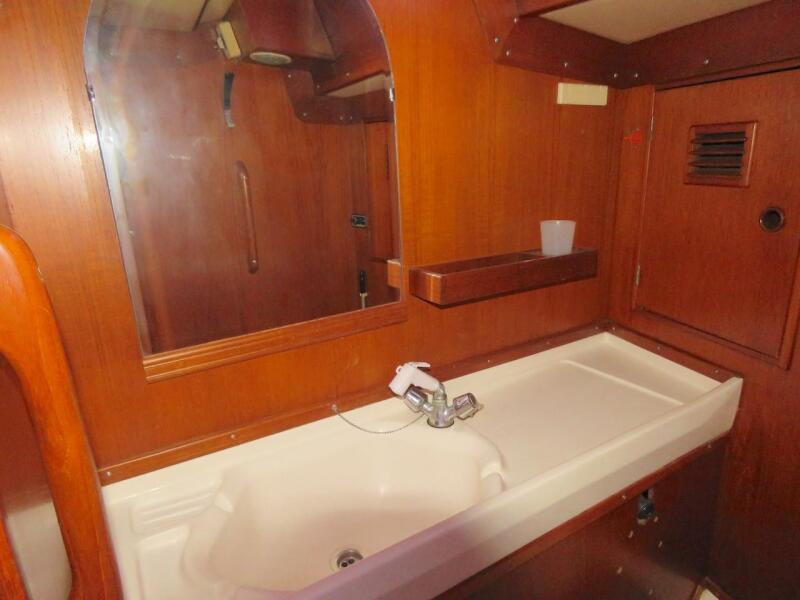

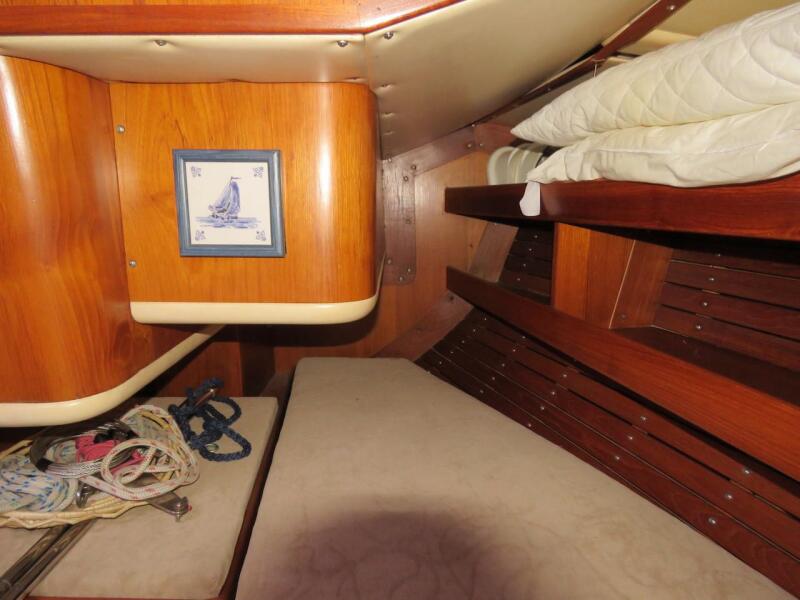

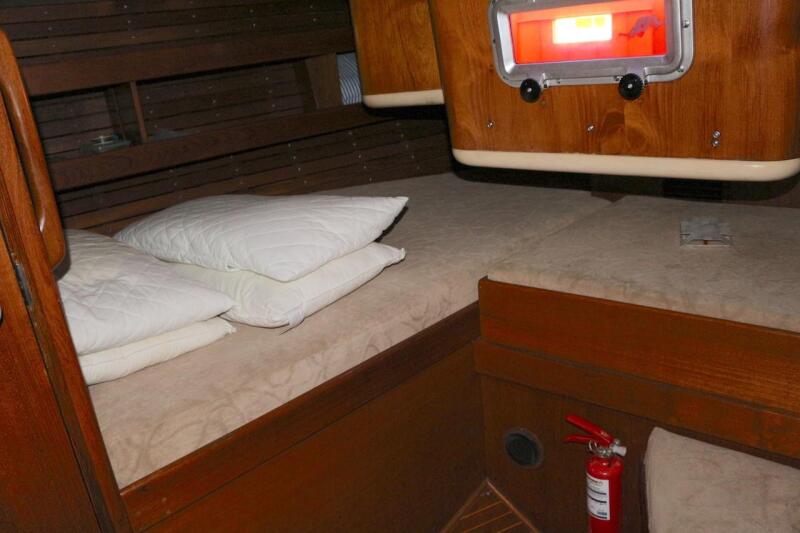

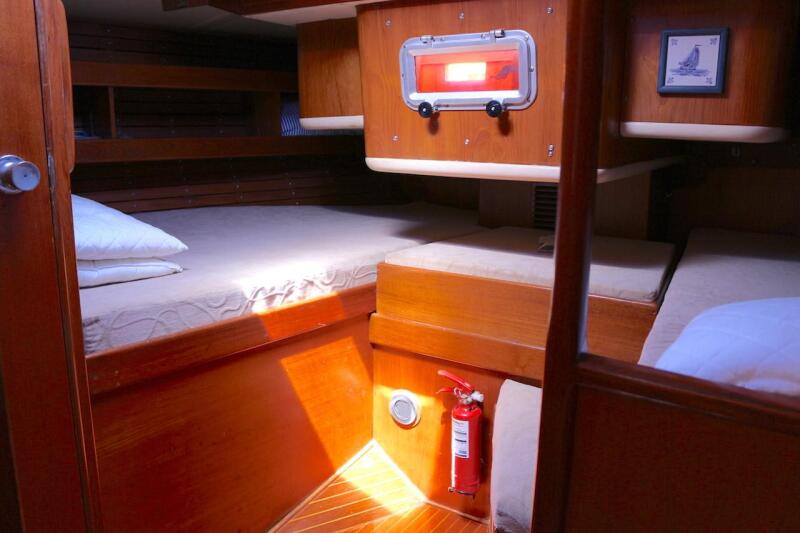

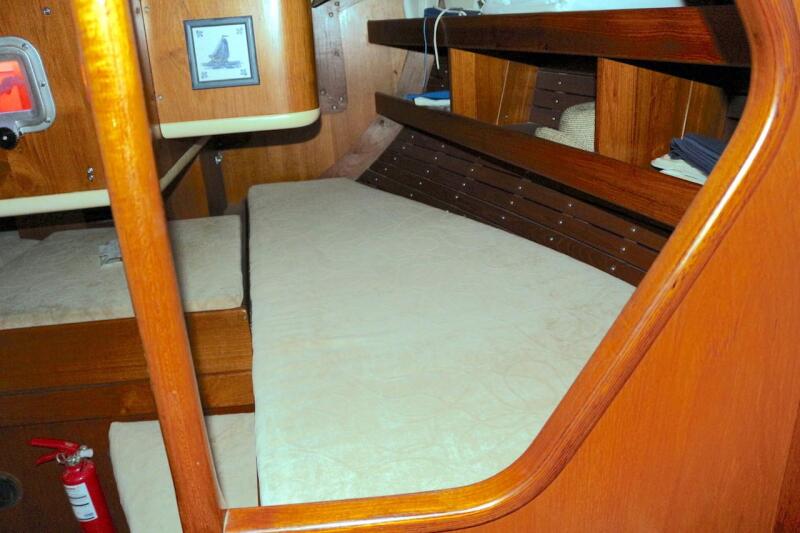

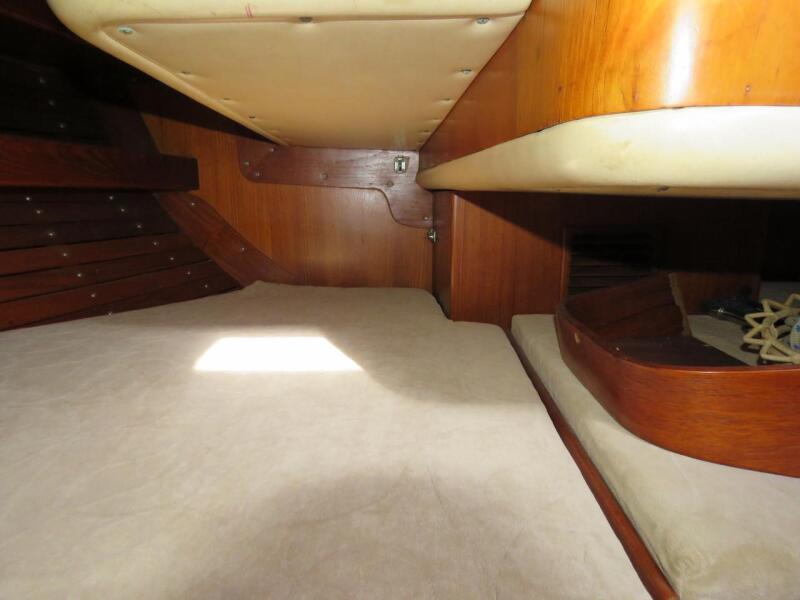

The aft cabin has a small double berth to starboard with a single berth to port. The generator is situated between the berths. There is a good array of stowage lockers. The aft heads is en-suite to the aft cabin with basin shower and hot and cold water and stowage lockers.

Construction

Hull, deck and superstructure construction:


The hull is GRP.


The deck is foam-cored GRP sandwich construction but is a single laminate with stainless steel backing plates under the deck fittings.

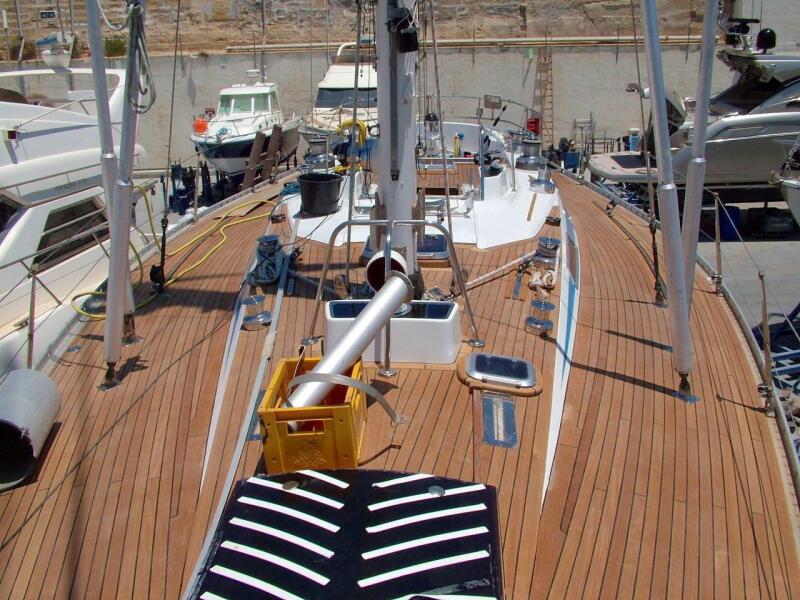

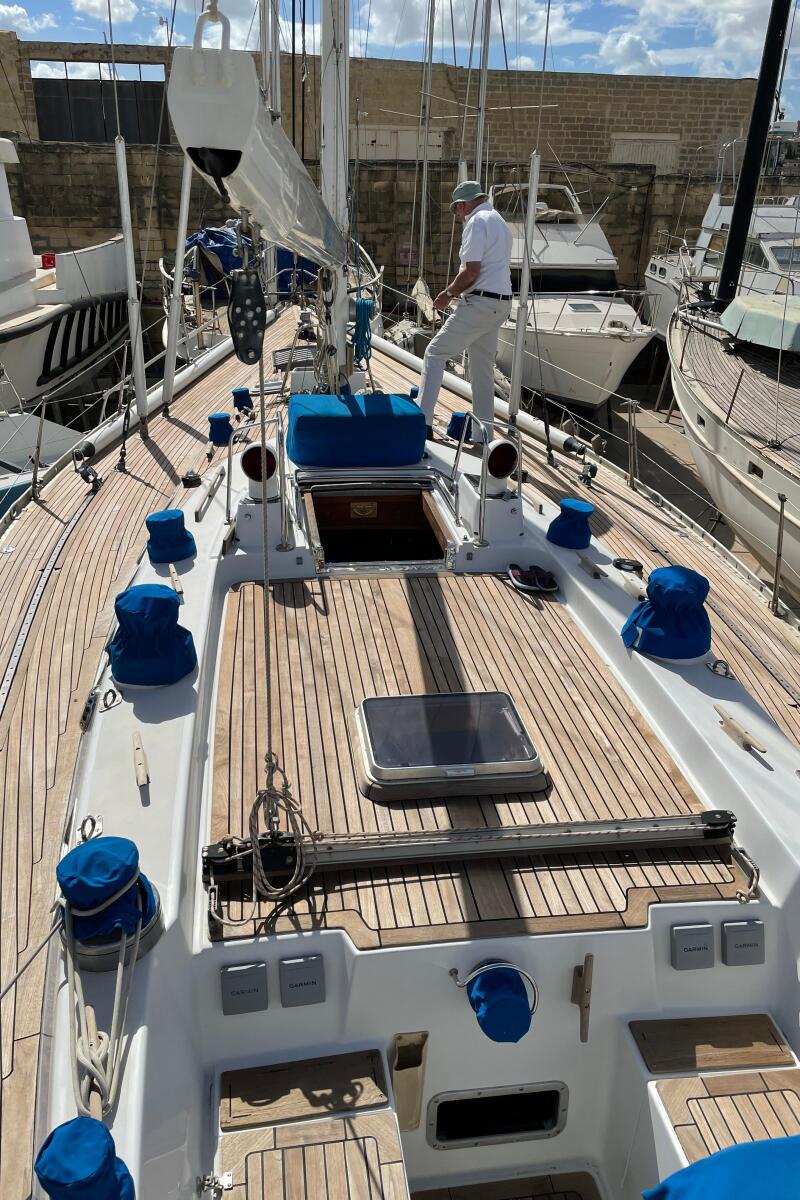

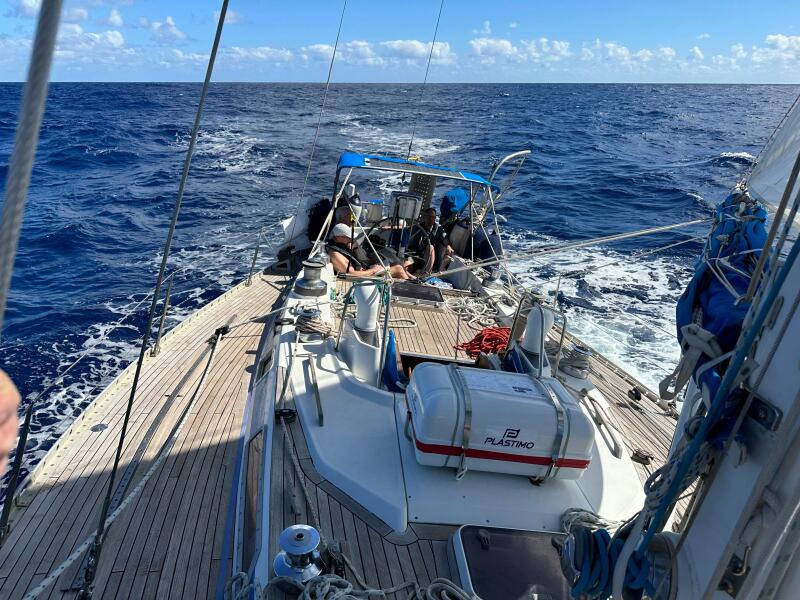

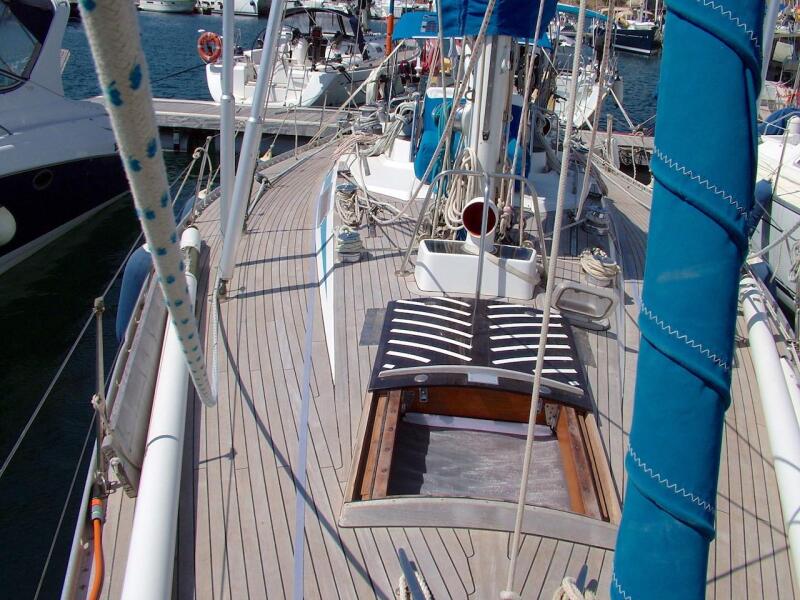

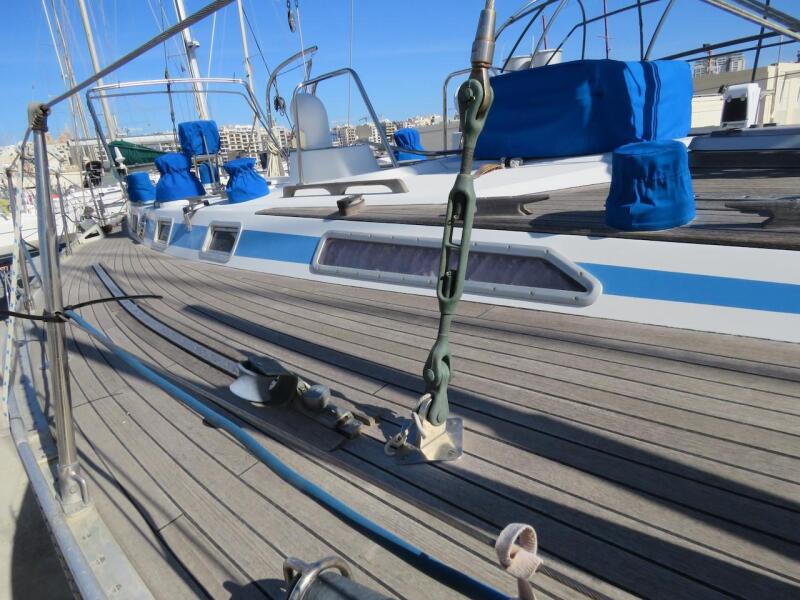

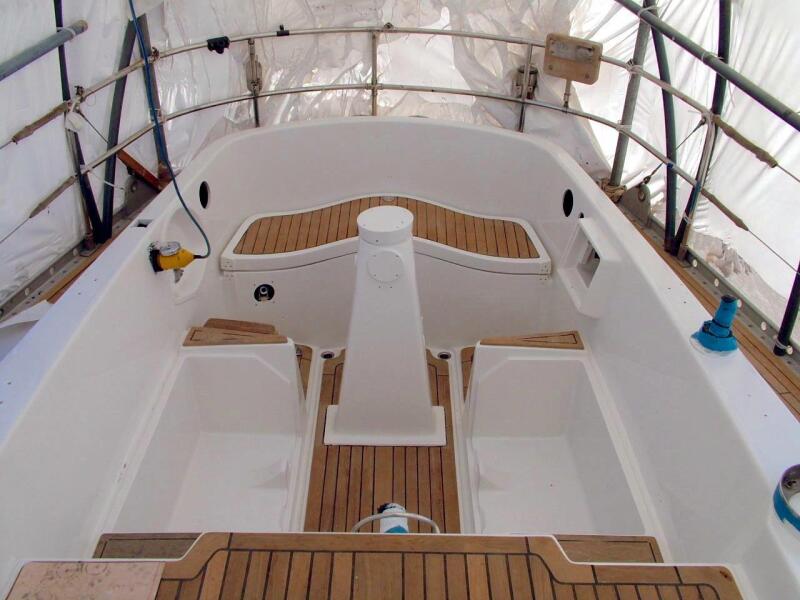

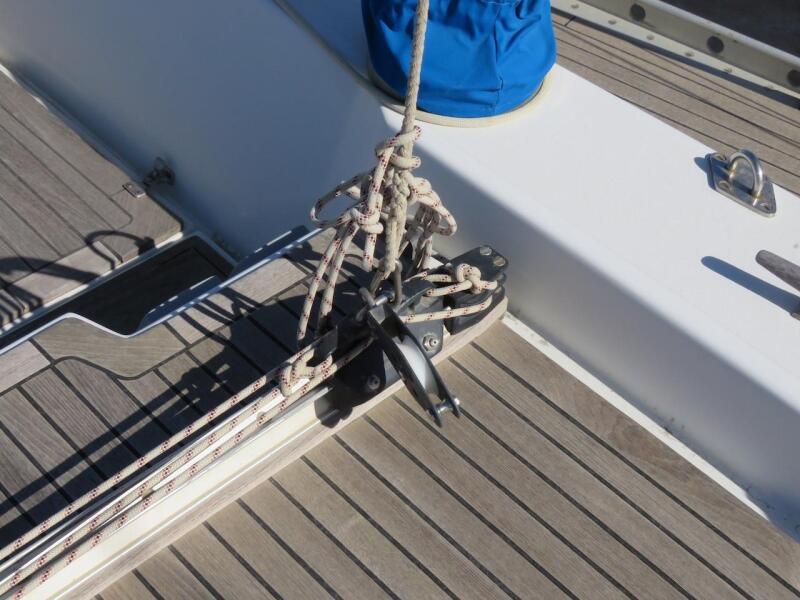

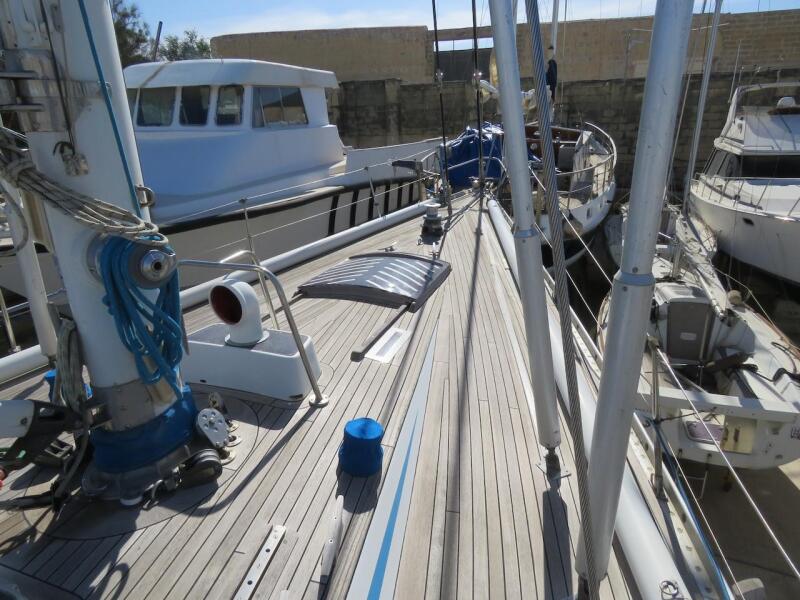

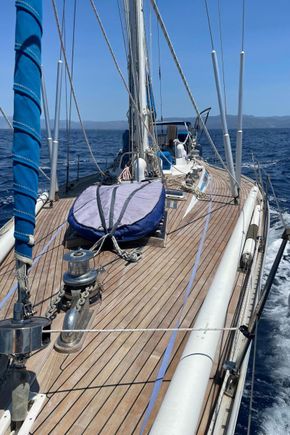

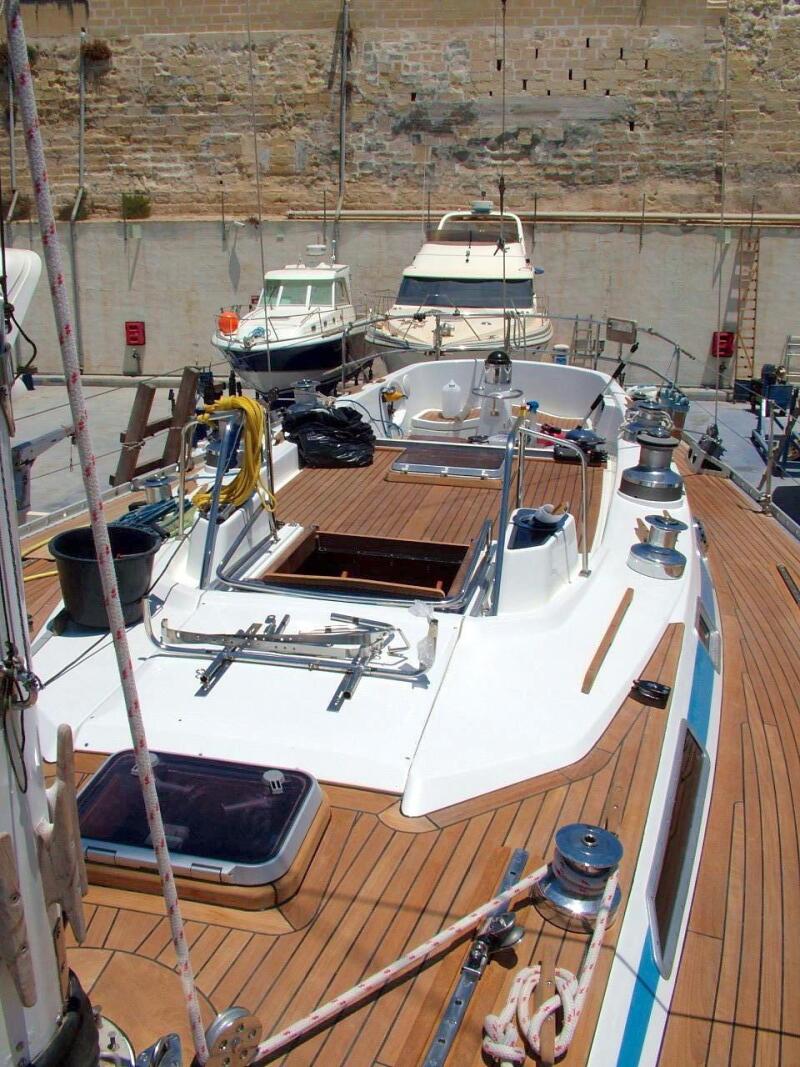

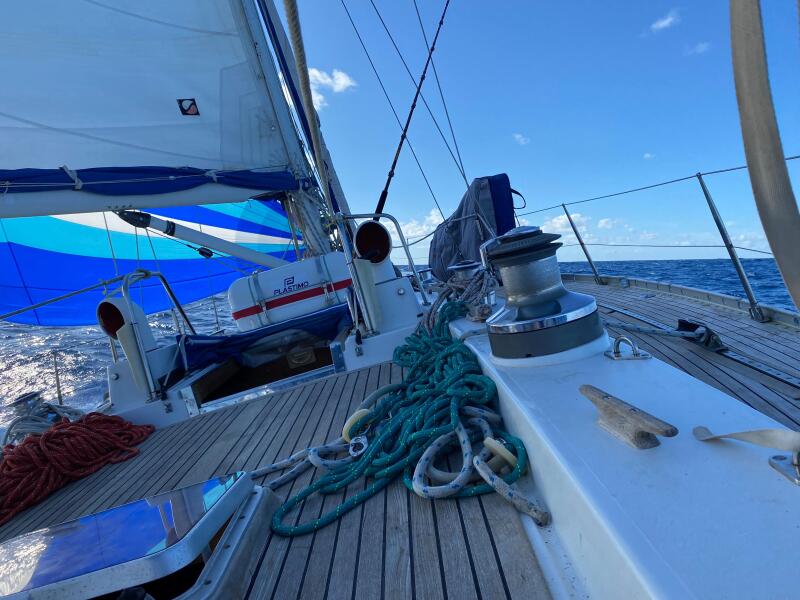

The side decks, coachroof, bridge deck and cockpit floor and seating are teak covered.


Keel and Rudder:


The ballast keel is a lead/antimony casting with stainless steel shoe and trailing edge.


The rudder is of foam-filled fibre glass, constructed with a high tensile stainless steel stock supported by 2 bearings

Equipment

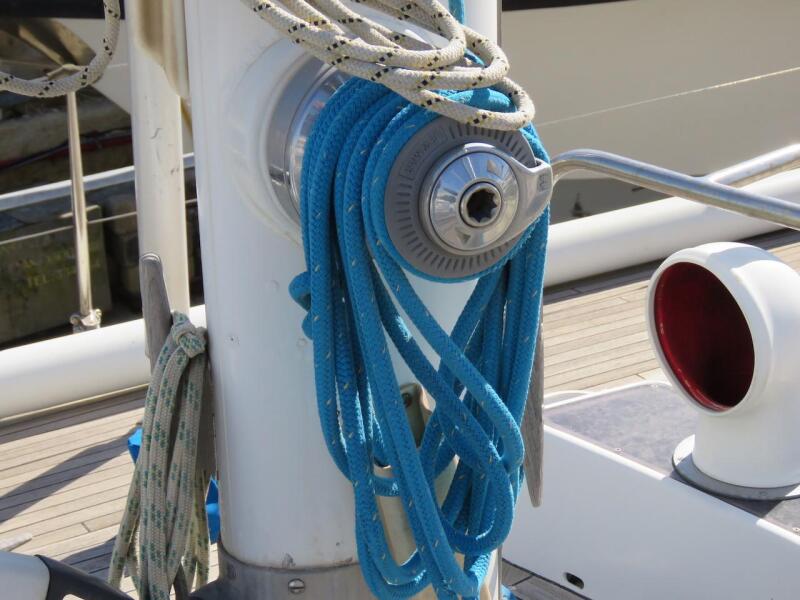

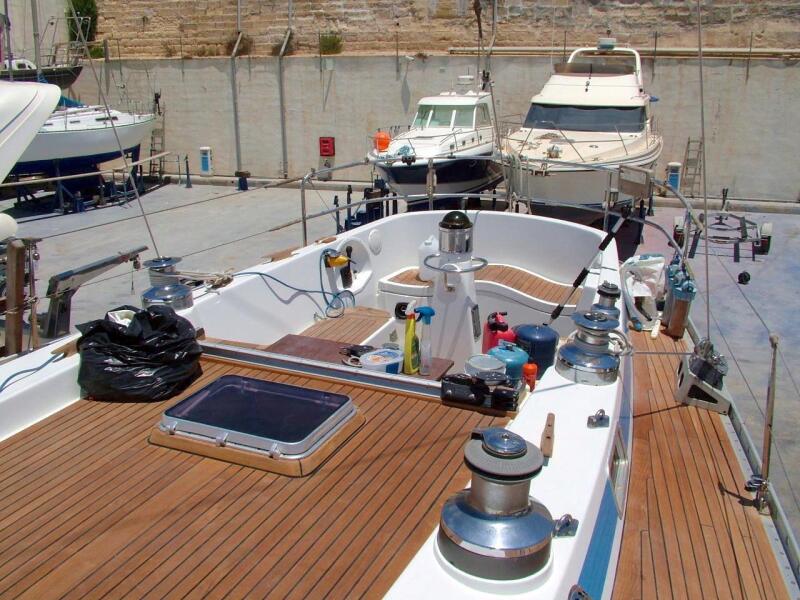

Winches:


1 x Lewmar 30 ST manual winch for furling lines (2004)


1 x Lewmar 40 2 speed manual winch for mainsheet.


2 x Lewmar 55 3 speed manual winch for Spin sheets/Check stays.

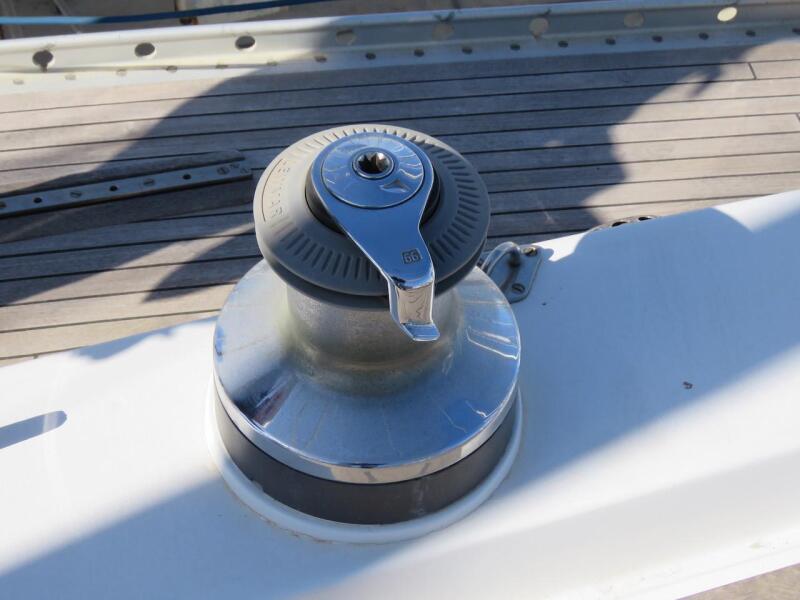

2 x Lewmar 66 ST 2 speed manual winches. Primaries. (1998). Replacing old coffee grinder system.


2 x Lewmar 48 3 speed manual winches for halyards.


2 x Lewmar 43 2 speed manual winches for control lines.


2 x Lewmar 40 2 speed manual winches for control lines adjacent to mast.


1 x Lewmar 44 ST 2 speed manual winch for main halyard.(2000)


2 x 9in Lewmar double handed winch handles.


Collection of 6 winch handles. Different makes/lengths.


General:


Stainless steel Pulpit and Pushpit. Gate in pulpit for stern-to mooring Stainless steel guardrail stanchions with stainless steel wire.


Stainless steel side mounted boarding ladder with teak steps.(removeable) Teak cockpit table.


Stainless steel protective bars forward of mast and by main companionway.


Avon 2.6m rib in Avon bag. Good condition.(2010) Complete with oars, pump anchor etc.


5HP Mariner 2 stroke outboard engine. Very good condition (2006). 1 fuel tank. Blue outboard engine cover. (Serviced November 2022)


Stainless steel Simpson Davits HL60S outboard engine crane. (2012)


Stainless steel 2.5m passerelle. Teak grill. Folds in half. Complete set of control lines.


Binoculars. 10 x 60


High powered torch with charger.


Anchoring & Mooring Equipment:

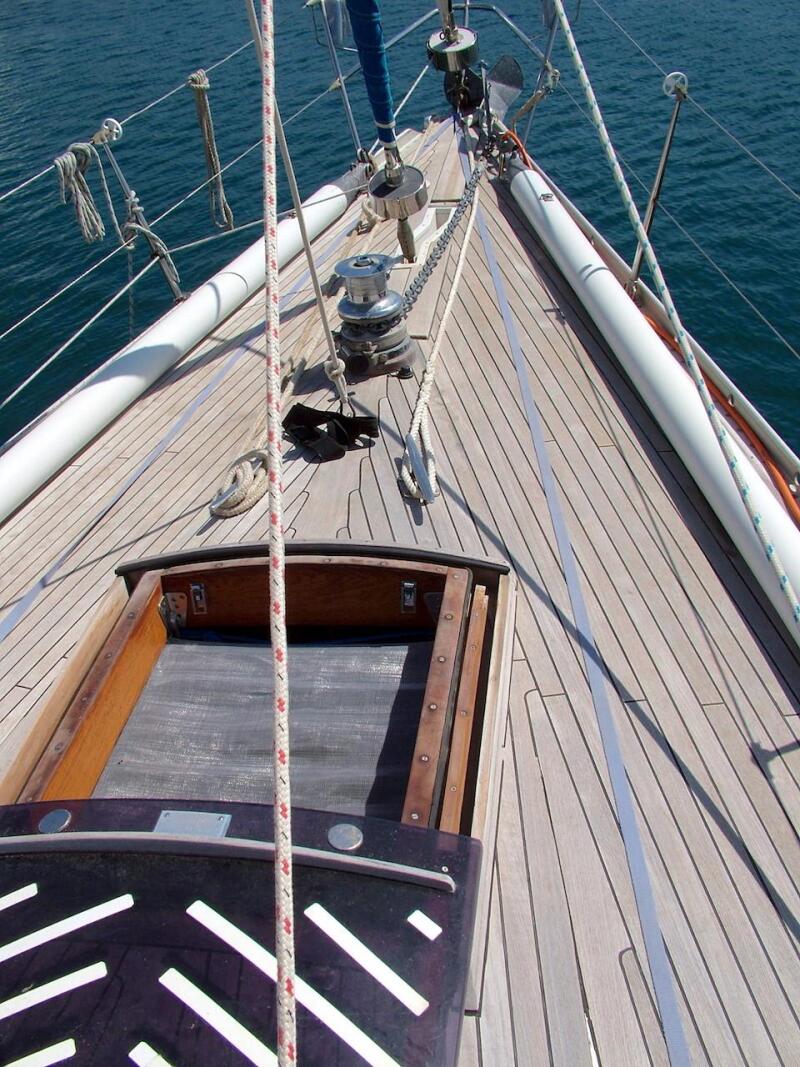

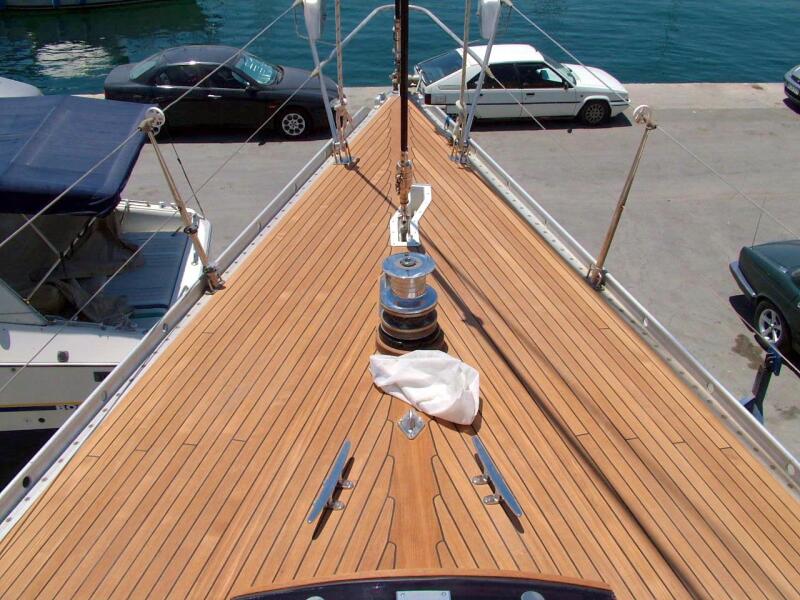

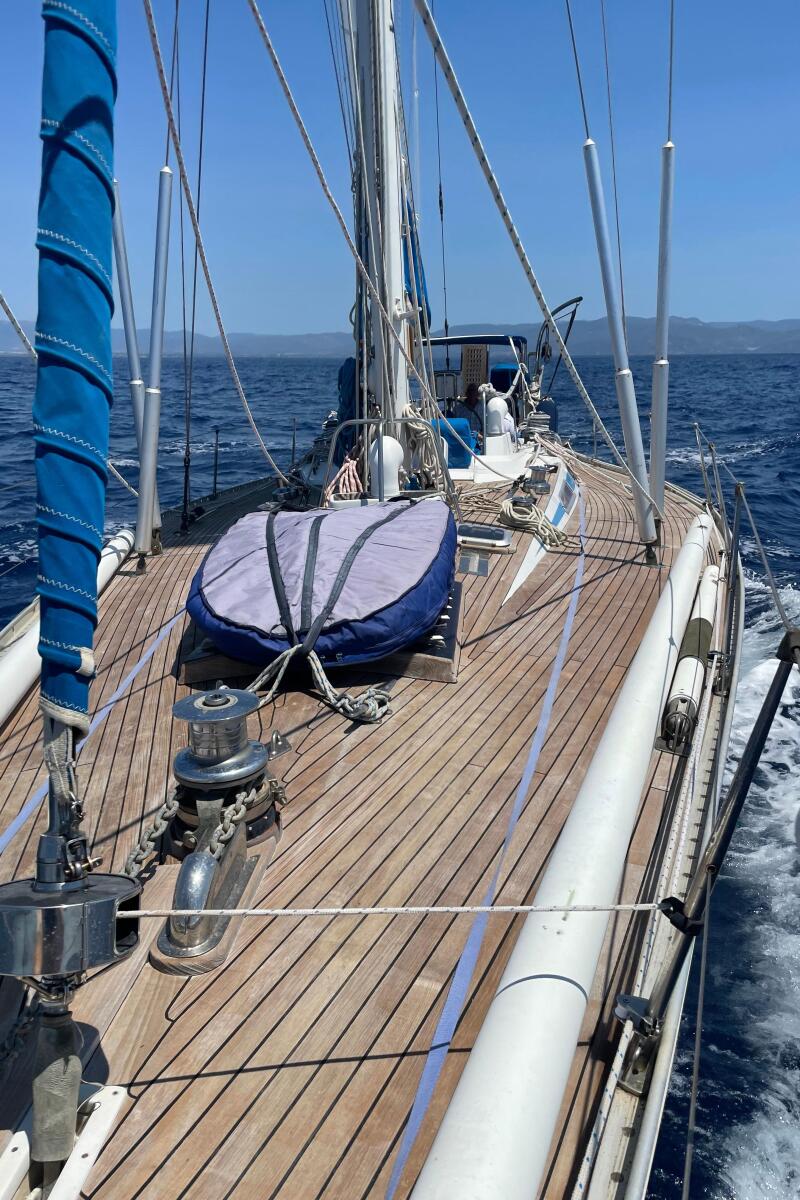

Lofrans Albatross 1.5kw 12v DC electric anchor windlass, 10mm chain gypsy and rope drum. Foredeck plug for windless control handset.


Quick chain counter mounted next to helm position.(2009)


25kgs Delta main anchor with 80m of 10mm galvanised chain.


25kgs Danforth secondary anchor with approx. 30m nylon warp.


30kgs stainless steel CQR style anchor.

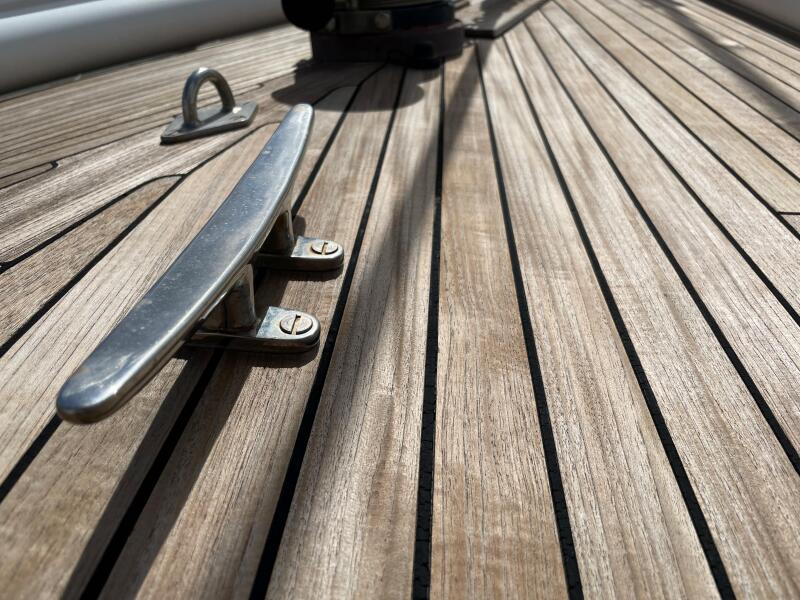

Mooring cleats forward and aft.


Warps and fenders.


New fenders with dark blue sock covers 2022


Covers, Canvas & Cushions:


Blue canvas sprayhood for mid companionway.(2014)


Blue canvas cover for liferaft.

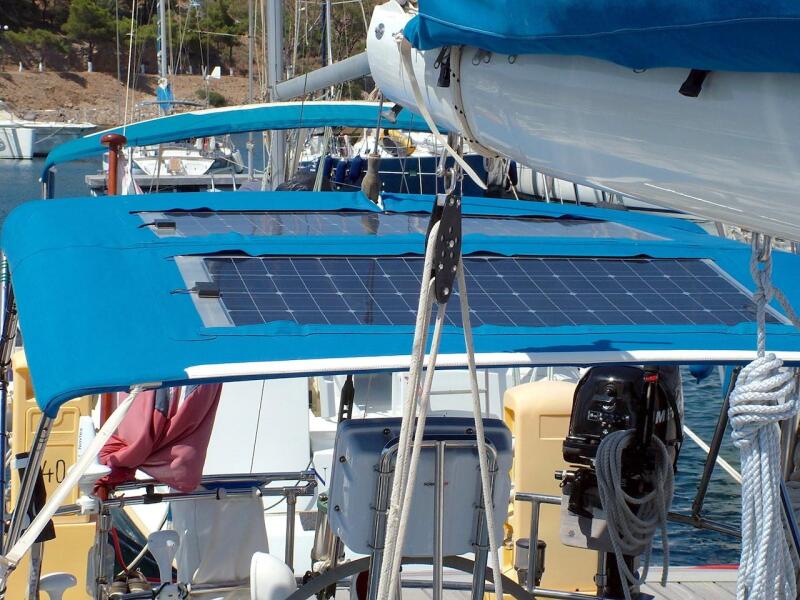

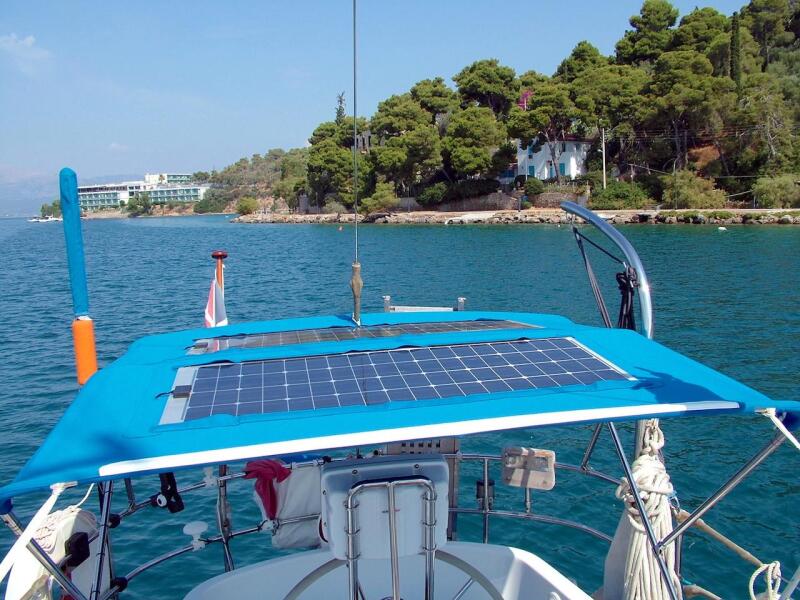

Aft cockpit blue bimini (2014) with breakdown stainless steel frame extending from near boom end to stern rail.


Blue winch covers for all winches.

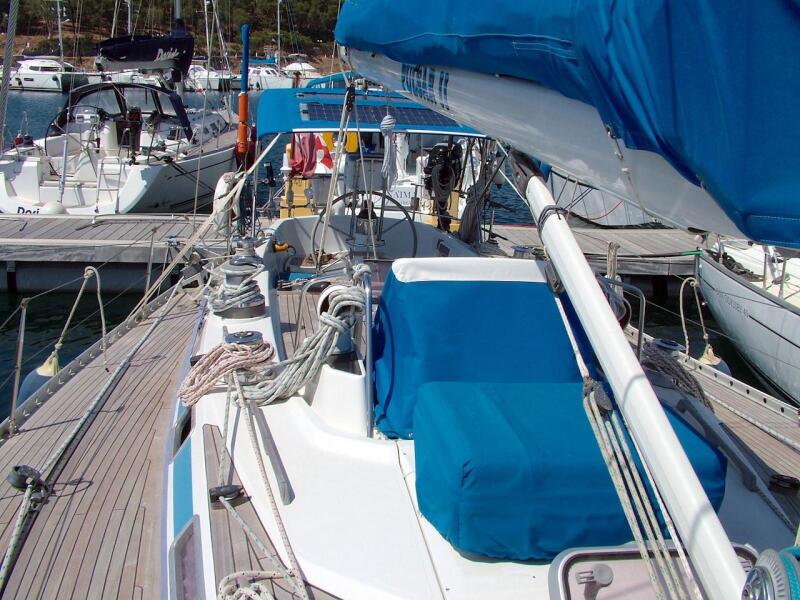

Blue covered cushions for all cockpit seats.


Suncover/boom tent. 2 covers that attach to each side of the mainsail packaway bag and then attach to the guard rails. This provides very adequate sun cover for the full length of the boom.

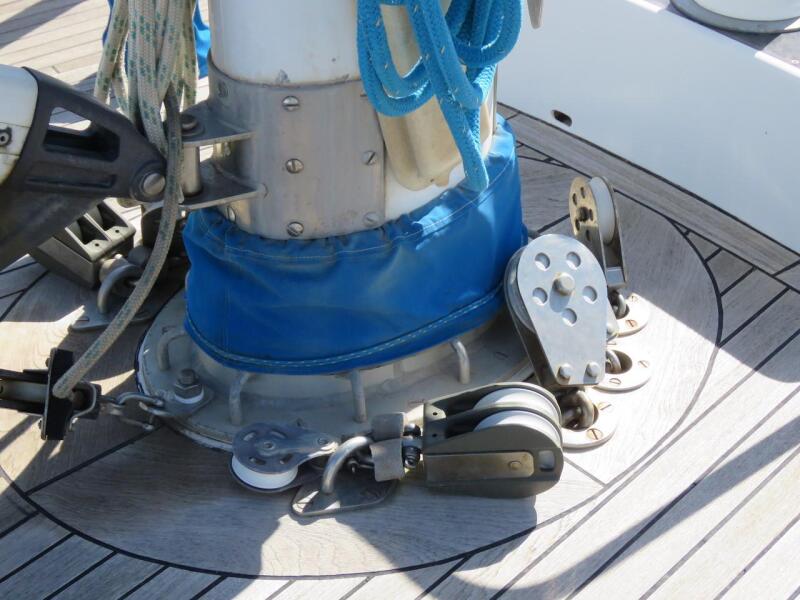

Blue canvas cover to protect rubber mast gaiter.


Blue wheel/chart plotter covers.

Disclaimer

Nicolle Associates offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

This vessel is deemed EU VAT paid.
As always photographs do not do justice so a viewing is highly recommended.
This boat is lying in St Lucia.
