Description

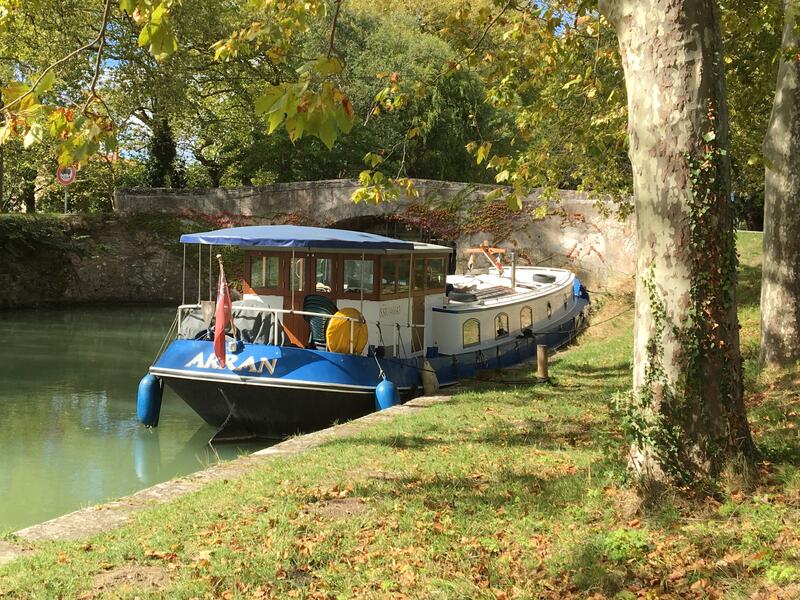

"ARRAN" crossed the English Channel to France in 2011 and has been moored on the Canal du Midi since 2018.
The comfortable saloon has large opening windows, a Refleks stove, a reclining settee, a fold up breakfast table & entertainment centre. The well equipped Galley has a 4 burner cooker, fridge freezer, dishwasher, washing machine and tumble dryer plus excellent storage. Sleeps 4 in two cabins (6 with optional wheelhouse bed). This Piper 60ft Replica Barge is in excellent condition and is very well equipped for comfortable cruising and living afloat.
The master bedroom has a walk round double bed, walk in en-suite shower room with toilet, a large hanging locker, full height book shelves plus plenty of cupboards and drawers. The guest cabin has two single beds, storage drawers and cupboards and the second shower room is directly opposite.
The collapsible Sapele wheelhouse provides a good social space with fold down front screen, port and starboard doors plus French style doors to the large aft deck (with roof cover). The aft deck becomes a "conservatory" when the clear screens are fitted. The bench seats convert to a double bed.
The living area has premium oak woodwork, white walls and ceilings with LED lights and is carpeted throughout. All windows are double glazed, the hull is spray foam insulated, including the bottom and all areas have central heating radiators, electric sockets plus very good storage. Good ventilation below is achieved with opening side windows, the opening dog box and four opening deck hatches with Oceanaire Skyscreens.
"ARRAN" is powered by a keel tank cooled Vetus Deutz DT44 114HP engine fitted with twin high output 24 volt/80 amp alternators and an Adverc battery management system. The variable speed Sleipner Side Power bowthruster gives excellent manoeuvrability. The barge has high volume fuel and water tanks. Electrical control is by Victron Energy and on board electricity generation is from a 5kw Northern Lights generator plus six solar panels.
We have owned "ARRAN" from new and have cruised on many of the canals and rivers in France and Belgium and she is ready for her next adventures.

SPECIFICATION

-HULL-

Length 18.29m, Beam3.96m, Draft 1m, Displacement c 35 tons,
RCD Category "C", Registration UK
Colour: Hull black, Blue Topsides and White Superstructure
Steel: Lloyds grade A, 12mm Baseplate, 8mm Chines & Sides, 5mm superstructure
Spray Foam Insulated - including bottom

-WHEELHOUSE-

Sapele Finish - Collapsible - (never lowered, even under Capestang bridge)
Two Bench Seats
Folding Removable Table with drop down leaf (Converts to double bed)
Port & Starboard "stable" doors
Double Doors to Aft Deck
Fold Down Front Screen
Stairs to Very Spacious Engine Room
"Laminated" Glass Double Glazing
Car Radio
Radiator

-LIVING AREA-

Premium Oak Finish with White Linings and Ceilings
LED Ceiling Lights
Carpeted throughout

-SALOON-

Reclining Settee + 2 Arm Chairs
6 Large Arched Opening Windows
Refleks Diesel Stove
"Dog Box" with Fly Screen
Fold Out Breakfast Table with 2 Folding Chairs
"Hidden" Work Table
Under Floor Storage
Radiator
Clock and Barometer
Toshiba TV
LG Video Recorder
Denon HI-Fi
Manhattan Satellite Decoder

-GALLEY and DOMESTIC-

Gas Cooker - Caprice - 4 Burner, Grill and Oven. Extractor above
Fridge/Freezer - Vitrifrigo
Microwave - Panasonic
Double Inset Stainless Sink
Washing Machine - Zanussi 6kg
Dishwasher - Smeg
Tumble Dryer - White Knight (in engine room)
Drawers, Wall and Floor Cupboards
Deck Hatch
Radiator

-OWNERS BEDROOM-

King Size Bed with Drawers and Storage underneath

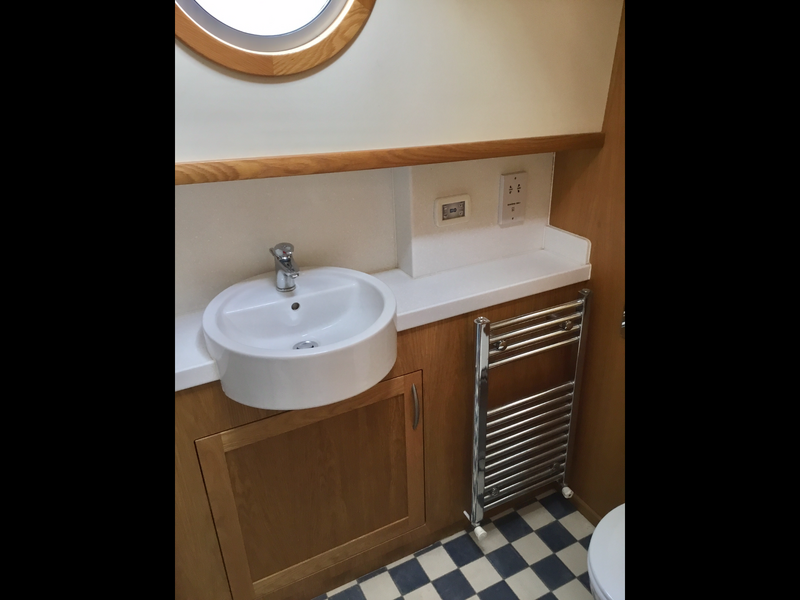

En-Suite Shower with Folding Glass Doors, Wash Basin & Toilet plus Deck Hatch
Hanging Lockers, Shelves, Cupboards and full height Book Shelves
Escape Hatch and Round Opening Windows
Car Radio
Radiator

-GUEST BEDROOM-

2 Single Beds with Drawers Underneath
Hanging Locker
Overhead Cupboard
Opening Round Window and Deck Hatch
Radiator

Directly opposite: Walk in Shower, Wash Basin, Toilet, Opening Round Window + Deck Hatch
Radiator

-INSTRUMENTS at the WHEEL-

Raymarine VHF/DSC Radio
GPS Chartplotter - Standard Horizon CP300i
AIS Receiver - NASA Engine
Adverc Digital Battery Circuit Monitor
Depth Display
Rudder Angle Display
Car Radio

-TECHNICAL-

Engine - Vetus Deutz DT44 - 114HP - Keel cooled
Gearbox - Hurth - ZF45
Twin Iskra 24 volt/80 amp Alternators (can run washing machine etc going along)
Adverc Battery Charging System
Bowthruster: Sleipner Side Power SE170/250TC (Variable Speed, Twin Contra Rotating Propellers)
Generator: Northern Lights M673L3 - 5 KW - Keel Cooled
6 Semi Flexible 100w, 12 volt Solar Panels
Central Heating Boiler: Haworth Heating Pressure Jet - 12 KW
FIRETRACE - Automatic Fire Extinguisher - (Engine Room)
White Diesel Tank - 1000 litres
Red Diesel Tank - 1000 litres
Black Water Tank c 650 litres
Water Tank - 1800 litres
Bilge Pumps: 2 Electric Automatic + 1 Manual
Spare Propeller

-VICTRON ON BOARD ENERGY-

Isolation Transformer
Multiplus 24/3000/70 Charger/Inverter
VE.Net Blue Power Panel
VE.Net Battery Controller
VE.Net Tank Monitor
Digital Multi Control Panel
Smart Solar MPPT Controller
Blue Power IP20 Charger - Bow Thruster
Blue Power IP20 Charger - Domestic batteries back up

-GENERAL-

Anchor Windlass - Lofrans Royal
"Halls" Main Anchor + 50 meters of Chain
4 Deck Lockers
Second Anchor - Fortress FX-55 with 50 meters of Multi Plait Rope
4 Lewmar Deck Hatches with Oceanaire Skyscreens
Aft Deck "Bimini" Cover on Stainless Frame
Aft Deck Enclosing Clear Screens - Zip On/Roll Up. (makes "Conservatory")
Summer Cover for Dog Box (Clear Panels with Zip Covers)
Winter Covers for Wheelhouse and Dog Box
Many Spares, Tools and Extras.
