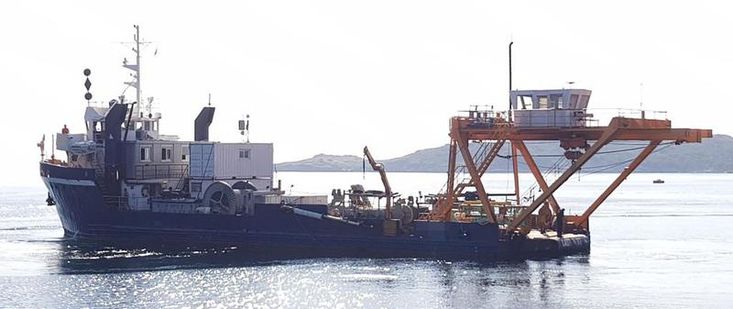

1090BSB SUPPORT Offshore Support Vessel For Charter
- FROM DIRECT OWNERS -
ADDITIONAL INFORMATION
Consumption 4 m3 per day in transit and 2m3 per day in DP
Vessel type: | 1090BSB SUPPORT Offshore Support Vessel For Charter |
Builder: | FRANCE |
Constructed: | 1971 |
Class Society: | BV |
Class Notation: | 60 nm offshore |
Guests: | 24 |
No. of engines: | 2 |
Engine model: | Baudouin DP 15 |
Engine power: | 860 |
Maximum Speed: | 7 Knots |
Length over all: | 46.24m |
Beam: | 11.30m |
Maximum draft: | 2.30m |

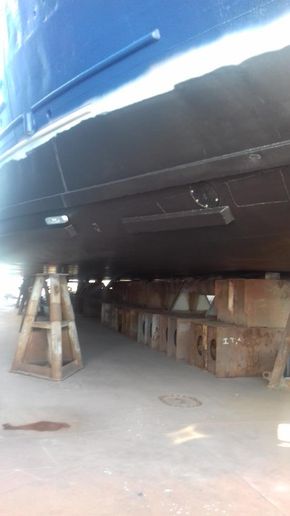

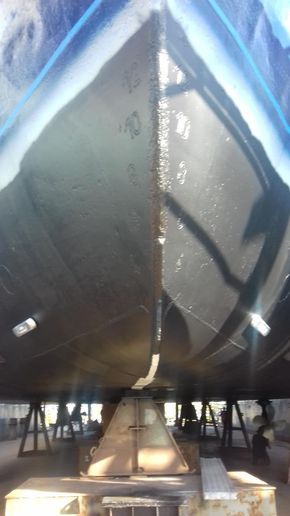

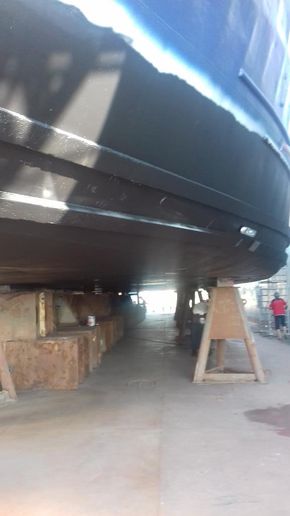

Hull material: | Steel |
Fuel capacity: | 70 Cubic Metres |
Water capacity: | 60 Cubic Metres |
9 air conditioned cabins for 24 persons (8 crew, 16 passengers)
Mess and galley
Built (year and place) 1971,FRANCE
Hull material STEEL
Length Overall (m) 46.24 m
Breadth (m) 11.30 m
Draft (m) 2.30 m
GT (tons) 406 tons

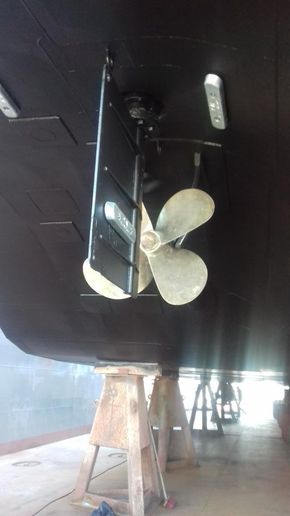

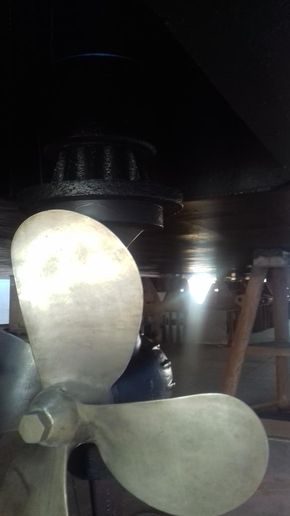

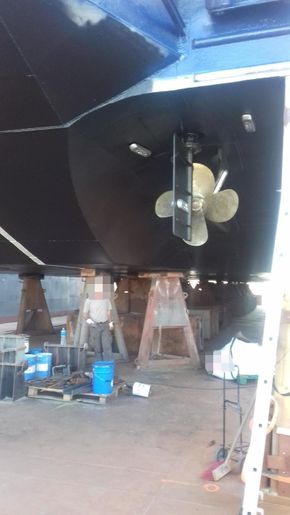

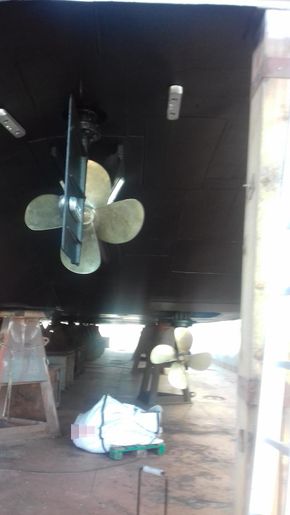

2 x Azimuth Thrusters
2 generators 100 and 200 kVa, 50 Hz, 220/380 V
DECK MACHINES
1 cable laying capstan: - Diameter: 2m, Max pull: 3 T
1 deep working winch: - Max pull: 15T
- 2 speeds: 1500 m/h (7T) and 750 m/h (15T)
- Cable: 3000 m diameter 16 mm
3 deck winchs of 5T each

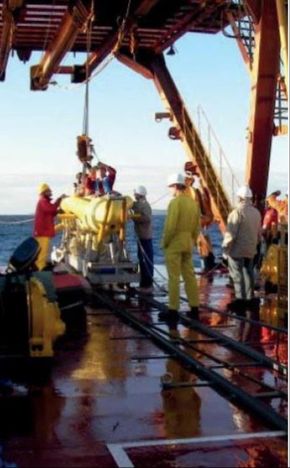

CRANES AND HANDLING SYSTEM
1 stern fixed handling structure including:
- 1 central monorail 25T, height under hook: 4,35m
- 2 lateral monorails of 5T each, height under hook: 5,2m
- Displacement of load: 7m behind stern/5 m on deck
1 crane 9 Tm (720kg at 10m)
1 crane 11 Tm (1250kg at 8m)
DECK
250m2 with reinforced structure
Twist locks for containers
All configurations possible (flush deck, containers, cranes, winches...)
COMEX ACDP 10 system interfaced with DGPS HEMISPHERE V 113
and/or DGPS Hemisphere Vector VS 131
2 independent control commands
2 azymuthally thrusters SCHOTTEL in gear with Deutz 513F engines
328 HP each
Total power output (BHP) 860 bhp
Main Engine(s) (make,type) 2 x Baudouin DP 15
Main Propulsion System Twin Screw
Auxiliary engine(s) 2 X 220 380
Speed maximum 7.5 knots
Flag FRANCE
Class Society and Notation BV 60 nm offshore
Next DD February 2021
Next SS February 2021
Next Annual Survey May 2019
